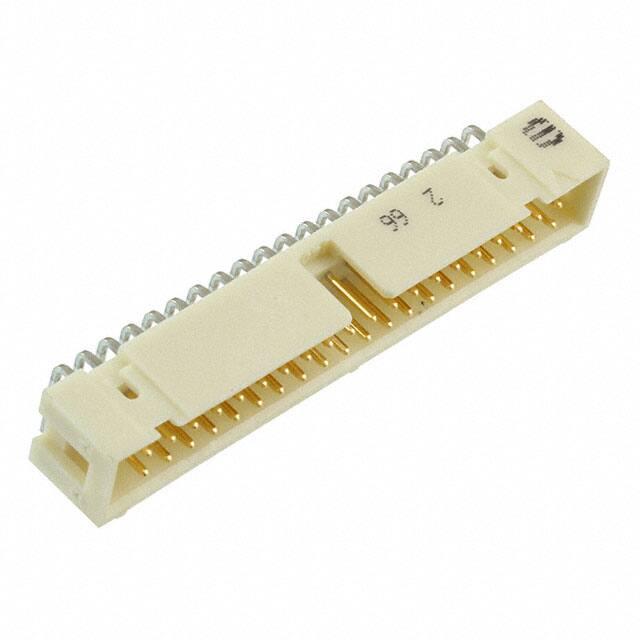

09195406323

Teknik Özellikler

Montaj

Through Hole

Length Termination

0.114 inch

Çalışma Sıcaklığı

-55°C~125°C

Özellikler

Keying Slot

Contact Finish Mating

NOT SPECIFIED

Reference Standard

UL

Kurşunsuz Kodu

yes

Montaj Tipi

Through Hole, Right Angle

Din Conformance

YES

Pitch Mating

0.100 2.54mm

Fabrika Tedarik Süresi

10 Weeks

Shrouding

Shrouded - 4 Wall

Material Flammability Rating

UL94 V-0

Insulation Materials

Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled

Contact Length Post

0.114 2.90mm

Number Of Pcb Rows

2

Dielectric Withstanding Voltage

1000VAC V

Option

GENERAL PURPOSE

Orientation

Straight

Fastening Type

Latch Holder

Seri

SEK

Pozisyon Sayısı

40

Insulation Color

Beige

Contact Materials

Copper Alloy

Row Spacing Mating

0.100 (2.54mm)

RoHS Durumu

ROHS3 Compliant

Iec Conformance

NO

Reliability

COMMERCIAL

Number Of Positions Loaded

All

Pcb Contact Pattern

RECTANGULAR

Rated Current Signal

1A

Contact Type

Male Pin

Contact Shape

Square

Polarization Key

CTR W/GUIDE SLOTS

Mating Contact Pitch

0.1 inch

Mixed Contacts

NO

Contact Lengthmating

0.240 6.10mm

Sıra Sayısı

2

Body Depth

0.48 inch

Additional Feature

STANDARDS: MIL-C-83503; DIN 41651, POLARIZED
