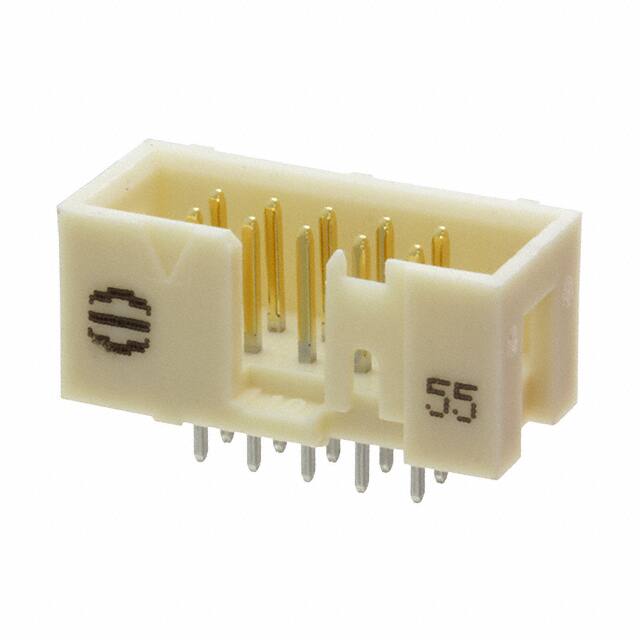

09195107324

Teknik Özellikler

Voltage Rated Dc

350V

Insulation Resistance

1GOhm

Working Voltage

350V

Ambalaj

Tray

Parça Durumu

Active

JESD-609 Kodu

e3

Renk

Grey

Insulation Height

0.350 8.89mm

Body Breadth

0.366 inch

Filter Feature

NO

Mil Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Connector Type

Header

Terminal

Solder

Ul Flammability Code

94V-0

Akım Değeri

1A

Number Of Conductors

ONE

Contact Finish Post

Tin

Style

Board to Cable/Wire

Rated Current Signal

2A

Contact Shape

Square

Contact Type

Male Pin

Number Of Positions Loaded

All

Pcb Contact Pattern

RECTANGULAR

Number Of Poles

10

Contact Plating

Gold

Mating Contact Pitch

0.1 inch

Mixed Contacts

NO

Polarization Key

POLARIZED HOUSING

Reach Svhc

No SVHC

Sıra Sayısı

2

Additional Feature

LOW PROFILE

Contact Resistance

20mOhm

Contact Lengthmating

0.240 6.10mm

Durability

50 Cycles

Orientation

Straight

Voltage Rated Ac

350V

Option

GENERAL PURPOSE

Length Tail

2.9mm

Seri

SEK
