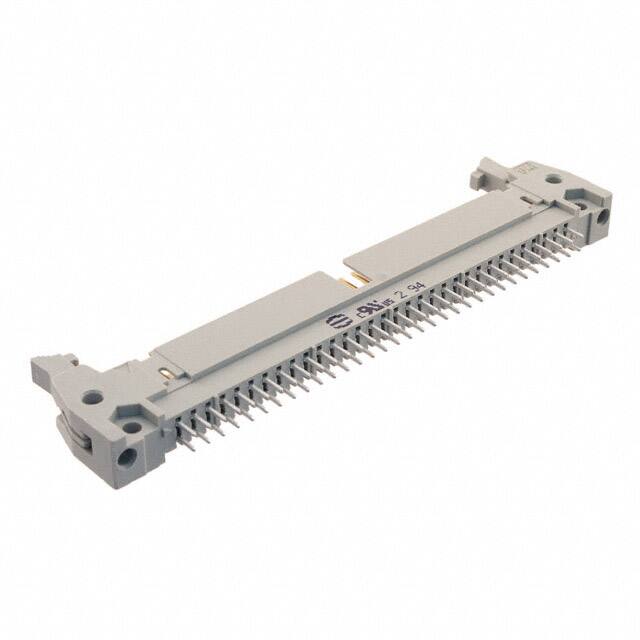

09185647904

Teknik Özellikler

Terminal

Solder

Ul Flammability Code

94V-0

Nem Hassasiyeti (MSL)

1 (Unlimited)

Connector Type

Header

Mil Conformance

NO

Filter Feature

NO

Body Breadth

0.331 inch

Style

Board to Cable/Wire

Contact Finish Post

Tin

Number Of Conductors

ONE

Akım Değeri

1A

Working Voltage

350V

Insulation Resistance

1GOhm

Voltage Rated Dc

350V

Insulation Height

0.681 17.30mm

Renk

Grey

Parça Durumu

Active

Ambalaj

Bulk

Reach Svhc

No SVHC

Polarization Key

CTR W/GUIDE SLOTS

Mixed Contacts

NO

Mating Contact Pitch

0.1 inch

Contact Lengthmating

0.228 5.80mm

Contact Resistance

20mOhm

Additional Feature

STANDARDS: DIN EN 60603-13; IEC 60603-13, POLARIZED

Sıra Sayısı

2

Pcb Contact Pattern

RECTANGULAR

Number Of Positions Loaded

All

Contact Shape

Square

Contact Type

Male Pin

Rated Current Signal

1A

Contact Plating

Gold

Number Of Poles

64

Insulation Color

Gray

Row Spacing Mating

0.100 (2.54mm)

RoHS Durumu

ROHS3 Compliant

Contact Materials

Copper Alloy

Reliability

COMMERCIAL

Overall Contact Length

0.650 16.51mm

Iec Conformance

NO
