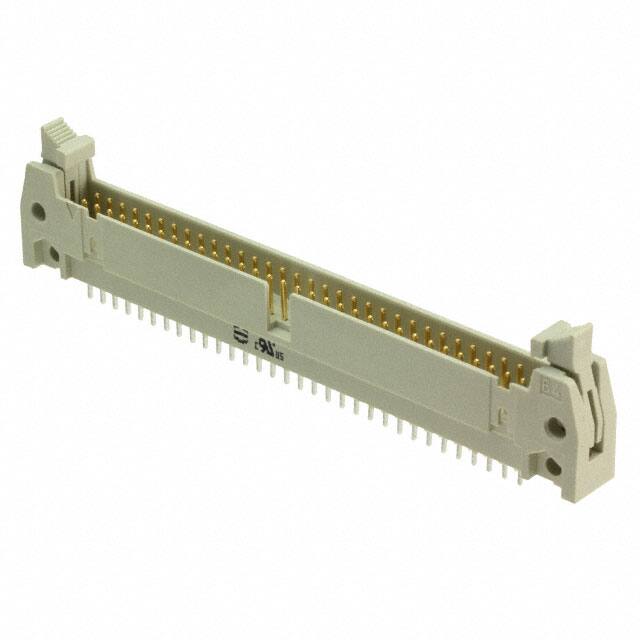

09185646914

Teknik Özellikler

Additional Feature

STANDARDS: DIN EN 60603-13; IEC 60603-13, POLARIZED

Uzunluk

100.88mm

Çalışma Sıcaklığı

-55°C~125°C

Reach Svhc

No SVHC

Depth

8.5mm

Body Breadth

0.335 inch

Number Of Conductors

ONE

RoHS Durumu

ROHS3 Compliant

Filter Feature

NO

Mating Contact Pitch

0.1 inch

Parça Durumu

Active

Insulation Resistance

1000000000Ohm

Connector Type

Header

Seri

SEK

Pozisyon Sayısı

64

Insulation Color

Gray

Montaj

Through Hole

Insulation Height

0.681 17.30mm

Mixed Contacts

NO

Overall Contact Length

0.650 16.51mm

Rated Current Signal

2A

Fastening Type

Latch Lock/Eject Hooks, Short

Reference Standard

UL

Orientation

Straight

Mil Conformance

NO

Style

Board to Cable/Wire

Kurşunsuz Kodu

yes

Contact Length Post

0.114 2.90mm

Number Of Positions Loaded

All

Lead Length

29mm

Pitch Mating

0.100 2.54mm

Option

GENERAL PURPOSE

Contact Shape

Square

Nem Hassasiyeti (MSL)

1 (Unlimited)

Sıra Sayısı

2

Contact Finish Post

Tin

Number Of Pcb Rows

2

Insulation Materials

Polybutylene Terephthalate (PBT), Glass Filled

Contact Finish Mating

NOT SPECIFIED

Contact Gender

Male
