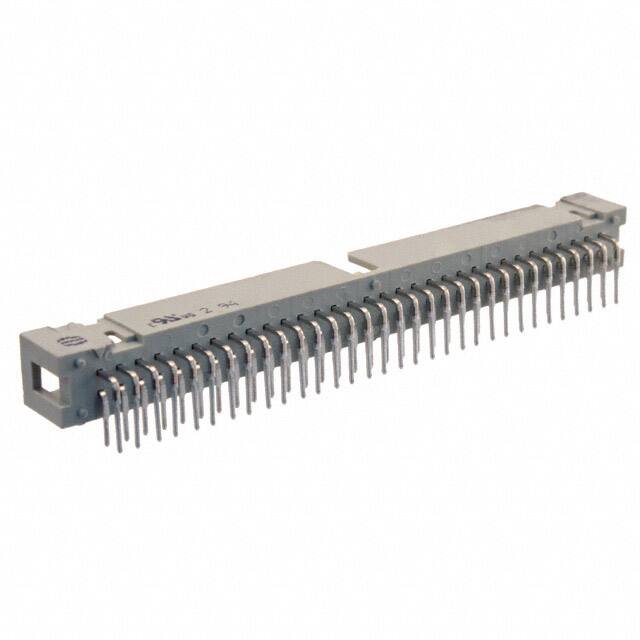

09185646323

Teknik Özellikler

Style

Board to Cable/Wire

Kurşunsuz Kodu

yes

Mil Conformance

NO

Reference Standard

UL

Rated Current Signal

1A

Fastening Type

Latch Holder

Contact Plating

Gold

Mixed Contacts

NO

Pitch Mating

0.100 2.54mm

Contact Length Post

0.114 2.90mm

Number Of Positions Loaded

All

RoHS Durumu

ROHS3 Compliant

Number Of Conductors

ONE

Kılıf / Paket

SMC

Çalışma Sıcaklığı

-55°C~125°C

Reach Svhc

No SVHC

Additional Feature

STANDARDS: DIN EN 60603-13; IEC 60603-13, POLARIZED

Montaj

Through Hole

Insulation Height

0.366 9.30mm

Pozisyon Sayısı

64

Dielectric Withstanding Voltage

1000VAC V

Insulation Color

Gray

Seri

SEK

Insulation Resistance

1000000000Ohm

Connector Type

Header

Mating Contact Pitch

0.1 inch

Parça Durumu

Active

Length Termination

0.114 inch

Filter Feature

NO

Material Flammability Rating

UL94 V-0

Akım Değeri

2A

Ambalaj

Tray

Row Spacing Mating

0.100 (2.54mm)

Pcb Contact Pattern

RECTANGULAR

Reliability

COMMERCIAL

Terminal

Solder

Montaj Tipi

Through Hole, Right Angle

Din Conformance

YES

Body Depth

0.48 inch

Fabrika Tedarik Süresi

10 Weeks
