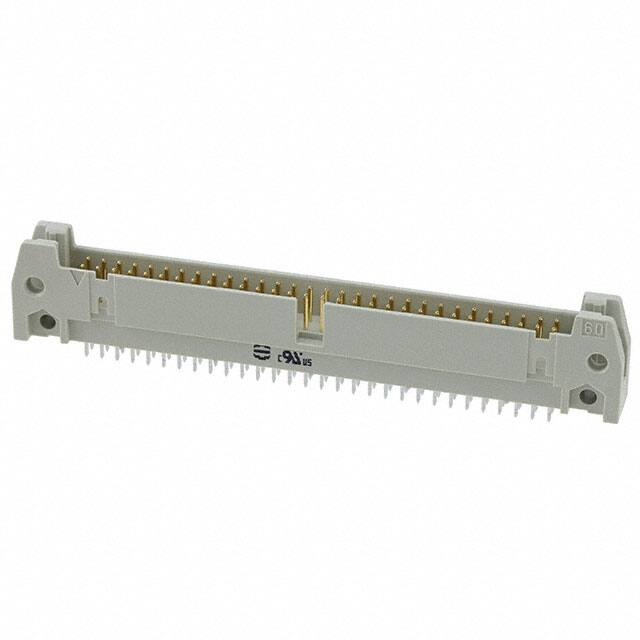

09185606924

Teknik Özellikler

Çalışma Sıcaklığı

-55°C~125°C

Body Breadth

0.335 inch

Number Of Conductors

ONE

RoHS Durumu

ROHS3 Compliant

Filter Feature

NO

Length Termination

0.114 inch

Parça Durumu

Active

Mating Contact Pitch

0.1 inch

Connector Type

Header

Insulation Resistance

1000000000Ohm

Seri

SEK

Insulation Color

Gray

Pozisyon Sayısı

60

Montaj

Through Hole

Insulation Height

0.681 17.30mm

Mixed Contacts

NO

Overall Contact Length

0.650 16.51mm

Fastening Type

Push-Pull

Rated Current Signal

2A

Reference Standard

UL

Orientation

Straight

Mil Conformance

NO

Kurşunsuz Kodu

yes

Style

Board to Cable/Wire

Contact Length Post

0.114 2.90mm

Number Of Positions Loaded

All

Pitch Mating

0.100 2.54mm

Option

GENERAL PURPOSE

Contact Shape

Square

Sıra Sayısı

2

Housing Material

Polyester

Nem Hassasiyeti (MSL)

1 (Unlimited)

Gender

Male

Contact Finish Post

Tin

Number Of Pcb Rows

2

Insulation Materials

Polybutylene Terephthalate (PBT), Glass Filled

Contact Finish Mating

NOT SPECIFIED

Contact Type

Male Pin

Özellikler

Keying Slot, Mounting Flange

Ul Flammability Code

94V-0
