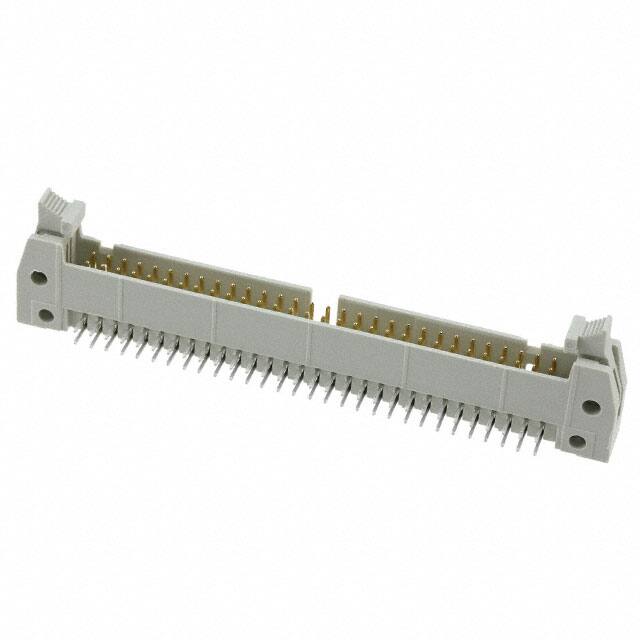

09185606913

Teknik Özellikler

Orientation

Right Angle

Mil Conformance

NO

Kurşunsuz Kodu

yes

Style

Board to Cable/Wire

Reference Standard

UL

Fastening Type

Latch Lock/Eject Hooks, Short

Rated Current Signal

1A

Mixed Contacts

NO

HTS Kodu

8536.69.40.40

Pitch Mating

0.100 2.54mm

Number Of Positions Loaded

All

Contact Length Post

0.114 2.90mm

Number Of Conductors

ONE

RoHS Durumu

ROHS3 Compliant

Body Breadth

0.331 inch

Reach Svhc

No SVHC

Çalışma Sıcaklığı

-55°C~125°C

Montaj

Through Hole

Insulation Height

0.335 8.51mm

Seri

SEK

Dielectric Withstanding Voltage

1000VAC V

Insulation Color

Gray

Pozisyon Sayısı

60

Parça Durumu

Active

Mating Contact Pitch

0.1 inch

Insulation Resistance

1000000000Ohm

Connector Type

Header

Filter Feature

NO

Length Termination

0.114 inch

Material Flammability Rating

UL94 V-0

Ambalaj

Bulk

Montaj Tipi

Through Hole, Right Angle

Terminal

Solder

Reliability

COMMERCIAL

Pcb Contact Pattern

RECTANGULAR

Row Spacing Mating

0.100 (2.54mm)

Fabrika Tedarik Süresi

7 Weeks

Body Depth

0.681 inch

ECCN Kodu

EAR99

Din Conformance

YES
