Adet bazlı fiyat
- 1+ adet$4.61
- 10+ adet$4.35
- 100+ adet$4.10
- 500+ adet$3.87
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği

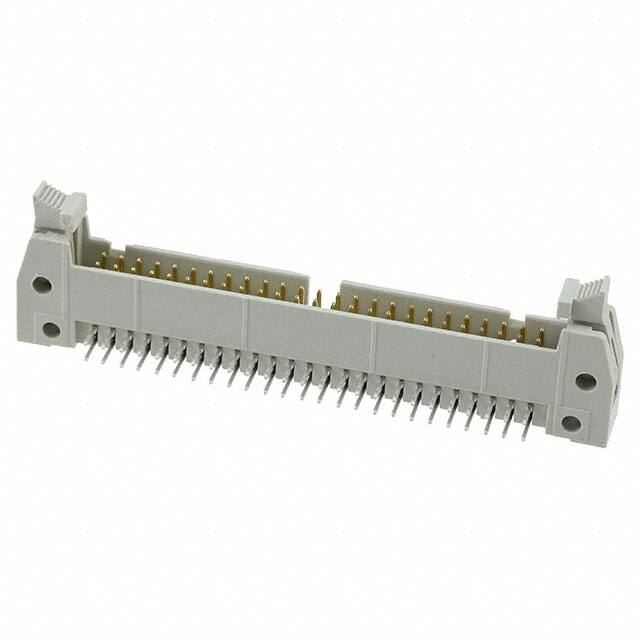

Teknik Özellikler
- Contact Materials
- Copper Alloy
- Contact Lengthmating
- 0.240 6.10mm
- Renk
- Grey
- Iec Conformance
- YES
- Shrouding
- Shrouded - 4 Wall
- Body Length Or Diameter
- 3.654 inch
- Fabrika Tedarik Süresi
- 7 Weeks
- Body Depth
- 0.681 inch
- ECCN Kodu
- EAR99
- Din Conformance
- YES
- Montaj Tipi
- Through Hole, Right Angle
- Terminal
- Solder
- Reliability
- COMMERCIAL
- Pcb Contact Pattern
- RECTANGULAR
- Row Spacing Mating
- 0.100 (2.54mm)
- Ambalaj
- Tray
- Akım Değeri
- 2A
- Material Flammability Rating
- UL94 V-0
- Contact Finish Mating
- NOT SPECIFIED
- Contact Gender
- Male
- Contact Type
- Male Pin
- Özellikler
- Keying Slot, Mounting Flange
- Ul Flammability Code
- 94V-0
- Polarization Key
- CTR W/GUIDE SLOTS
- Option
- GENERAL PURPOSE
- Contact Shape
- Square
- Sıra Sayısı
- 2
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Number Of Pcb Rows
- 2
- Voltage Rated Dc
- 350V
- Insulation Materials
- Polybutylene Terephthalate (PBT), Glass Filled
- Contact Length Post
- 0.114 2.90mm
- Number Of Positions Loaded
- All
- HTS Kodu
- 8536.69.40.40
- Pitch Mating
- 0.100 2.54mm
- Mixed Contacts
- NO
- Contact Plating
- Gold
- Fastening Type
- Latch Lock/Eject Hooks, Short
- Rated Current Signal
- 1A
- Contact Resistance
- 20mOhm
