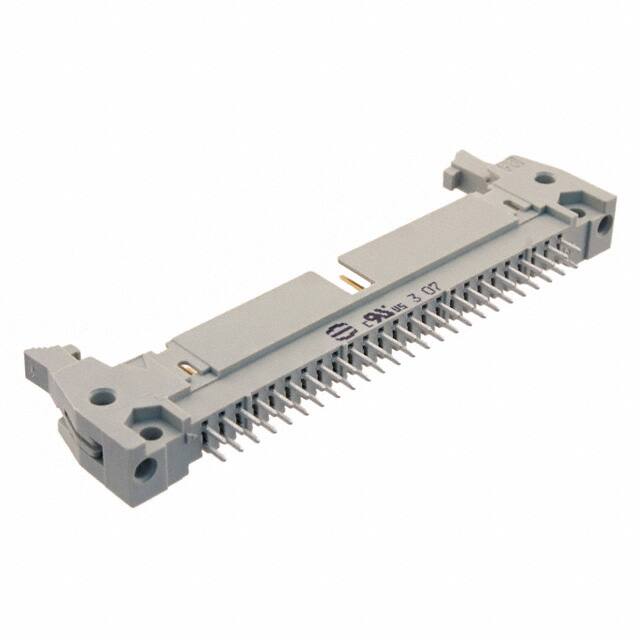

09185507904

Teknik Özellikler

Lead Pitch

2.54mm

Voltage Rated Ac

350V

Flammability Rating

UL94 V-0

Insulation Height

0.681 17.30mm

Montaj

Through Hole

Seri

SEK

Insulation Color

Gray

Dielectric Withstanding Voltage

1000VAC V

Parça Durumu

Active

Mating Contact Pitch

0.1 inch

Connector Type

Header

Insulation Resistance

1GOhm

Max Current Rating

2A

Filter Feature

NO

Number Of Conductors

ONE

RoHS Durumu

ROHS3 Compliant

Depth

8.5mm

Body Breadth

0.331 inch

Reach Svhc

No SVHC

Çalışma Sıcaklığı

-55°C~125°C

Additional Feature

STANDARDS: DIN EN 60603-13; IEC 60603-13, POLARIZED

Uzunluk

83.1mm

HTS Kodu

8536.69.40.40

Pitch Mating

0.100 2.54mm

Number Of Positions Loaded

All

Contact Length Post

0.114 2.90mm

Mil Conformance

NO

Orientation

Straight

Kurşunsuz Kodu

yes

Style

Board to Cable/Wire

Contact Resistance

20mOhm

Reference Standard

UL

Contact Plating

Gold

Number Of Poles

50

Fastening Type

Latch Lock/Eject Hooks, Long

Rated Current Signal

1A

Overall Contact Length

0.650 16.51mm

Mixed Contacts

NO

Polarization Key

CTR W/GUIDE SLOTS

Özellikler

Keying Slot, Mounting Flange
