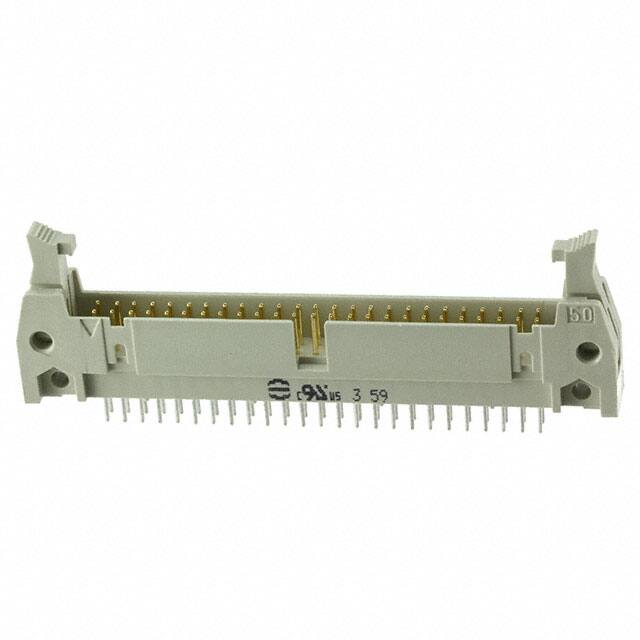

09185507902

Teknik Özellikler

Iec Conformance

NO

Renk

Grey

Contact Materials

Copper Alloy

Contact Lengthmating

0.240 6.10mm

Body Depth

0.681 inch

Fabrika Tedarik Süresi

7 Weeks

ECCN Kodu

EAR99

Din Conformance

YES

Shrouding

Shrouded - 4 Wall

Body Length Or Diameter

3.787 inch

Terminal

Solder

Montaj Tipi

Through Hole

Pcb Contact Pattern

RECTANGULAR

Row Spacing Mating

0.100 (2.54mm)

Reliability

COMMERCIAL

Material Flammability Rating

UL94 V-0

Ambalaj

Tray

Contact Type

Male Pin

Contact Finish Mating

NOT SPECIFIED

Polarization Key

CTR W/GUIDE SLOTS

Ul Flammability Code

94V-0

Özellikler

Keying Slot, Mounting Flange

Nem Hassasiyeti (MSL)

1 (Unlimited)

Sıra Sayısı

2

Option

GENERAL PURPOSE

Contact Shape

Square

Insulation Materials

Polybutylene Terephthalate (PBT), Glass Filled

Contact Finish Post

Tin

Number Of Pcb Rows

2

Number Of Positions Loaded

All

Contact Length Post

0.177 4.50mm

HTS Kodu

8536.69.40.40

Pitch Mating

0.100 2.54mm

Rated Current Signal

1A

Fastening Type

Latch Lock/Eject Hooks, Long

Overall Contact Length

0.713 18.10mm

Mixed Contacts

NO

Mil Conformance

NO

Style

Board to Cable/Wire

Kurşunsuz Kodu

yes
