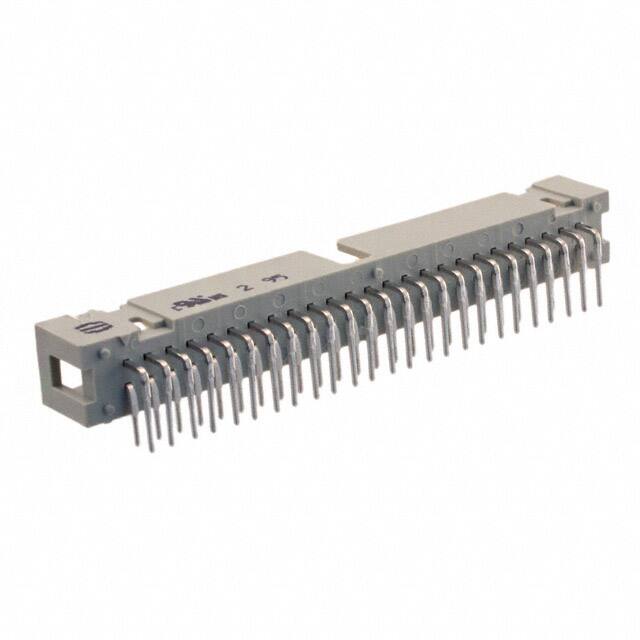

09185506323

Teknik Özellikler

Contact Resistance

20mOhm

Reference Standard

UL

Kurşunsuz Kodu

yes

Style

Board to Cable/Wire

Mil Conformance

NO

Orientation

Right Angle

Mixed Contacts

NO

Fastening Type

Latch Holder

Rated Current Signal

1A

Contact Plating

Gold

HTS Kodu

8536.69.40.40

Pitch Mating

0.100 2.54mm

Number Of Positions Loaded

All

Contact Length Post

0.114 2.90mm

RoHS Durumu

ROHS3 Compliant

Number Of Conductors

ONE

Additional Feature

STANDARDS: DIN EN 60603-13; IEC 60603-13, POLARIZED

Reach Svhc

No SVHC

Çalışma Sıcaklığı

-55°C~125°C

Insulation Color

Gray

Dielectric Withstanding Voltage

1000VAC V

Pozisyon Sayısı

50

Seri

SEK

Flammability Rating

UL94 V-0

Insulation Height

0.366 9.30mm

Montaj

Through Hole

Lead Pitch

2.54mm

Contact Current Rating

1A

Voltage Rated Ac

350V

Filter Feature

NO

Length Termination

0.114 inch

Connector Type

Header

Insulation Resistance

1GOhm

Parça Durumu

Active

Mating Contact Pitch

0.1 inch

Ambalaj

Bulk

Genişlik

71.3mm

Material Flammability Rating

UL94 V-0

Akım Değeri

1A

Reliability

COMMERCIAL
