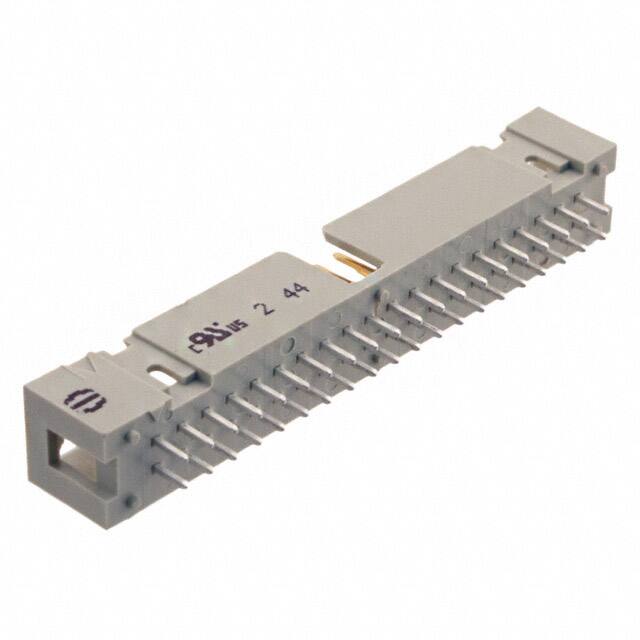

09185406324

Teknik Özellikler

Lead Length

29mm

Contact Length Post

0.114 2.90mm

Number Of Positions Loaded

All

Pitch Mating

0.100 2.54mm

Fastening Type

Latch Holder

Rated Current Signal

2A

Number Of Poles

40

Contact Plating

Gold

Mixed Contacts

NO

Kurşunsuz Kodu

yes

Style

Board to Cable/Wire

Orientation

Straight

Mil Conformance

NO

Contact Resistance

20mOhm

Reference Standard

UL

Insulation Resistance

1GOhm

Connector Type

Header

Parça Durumu

Active

Mating Contact Pitch

0.1 inch

Filter Feature

NO

Flammability Rating

UL94 V-0

Montaj

Through Hole

Insulation Height

0.350 8.89mm

Lead Pitch

2.54mm

Voltage Rated Ac

350V

Contact Current Rating

1A

Insulation Color

Gray

Seri

SEK

Reach Svhc

No SVHC

Çalışma Sıcaklığı

-55°C~125°C

Additional Feature

STANDARD: IEC 60603-13; DIN EN 60603-13, POLARIZED

Uzunluk

58.42mm

RoHS Durumu

ROHS3 Compliant

Number Of Conductors

ONE

Body Breadth

0.366 inch

Depth

9.2mm

Renk

Grey

Iec Conformance

YES

Contact Lengthmating

0.240 6.10mm

Yükseklik

12.35mm
