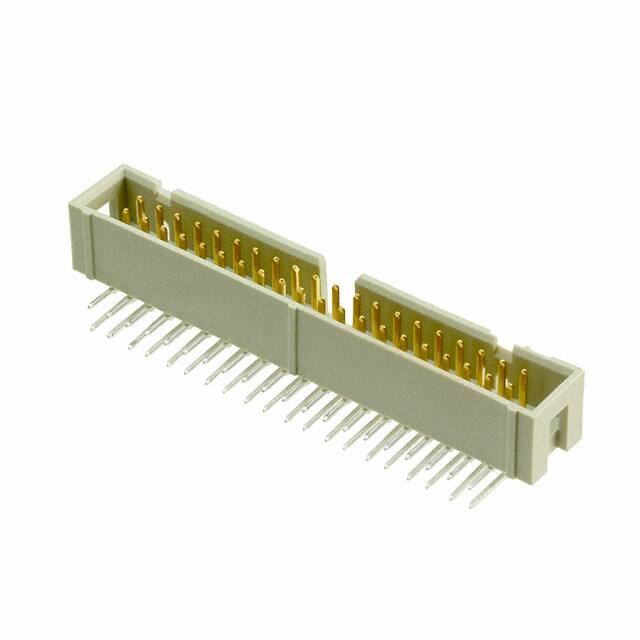

09185405323

Teknik Özellikler

Mating Contact Pitch

0.1 inch

Parça Durumu

Active

Insulation Resistance

1000000000Ohm

Connector Type

Header

Length Termination

0.114 inch

Filter Feature

NO

Montaj

Through Hole

Insulation Height

0.366 9.30mm

Seri

SEK

Pozisyon Sayısı

40

Dielectric Withstanding Voltage

1000VAC V

Insulation Color

Gray

Plating Thickness

30μin

Çalışma Sıcaklığı

-55°C~125°C

Additional Feature

STANDARDS: DIN EN 60603-13; IEC 60603-13, POLARIZED

Number Of Conductors

ONE

RoHS Durumu

ROHS3 Compliant

Contact Length Post

0.114 2.90mm

Number Of Positions Loaded

All

Pitch Mating

0.100 2.54mm

Rated Current Signal

1A

Fastening Type

Latch Holder

Mixed Contacts

NO

Mil Conformance

NO

Style

Board to Cable/Wire

Kurşunsuz Kodu

yes

Reference Standard

UL

Contact Type

Male Pin

Contact Finish Mating

Gold

Polarization Key

CTR W/GUIDE SLOTS

Ul Flammability Code

94V-0

Özellikler

Keying Slot

Nem Hassasiyeti (MSL)

1 (Unlimited)

Sıra Sayısı

2

Option

GENERAL PURPOSE

Contact Shape

Square

Insulation Materials

Polybutylene Terephthalate (PBT), Glass Filled

Contact Finish Post

Tin

Number Of Pcb Rows

2

Iec Conformance

YES
