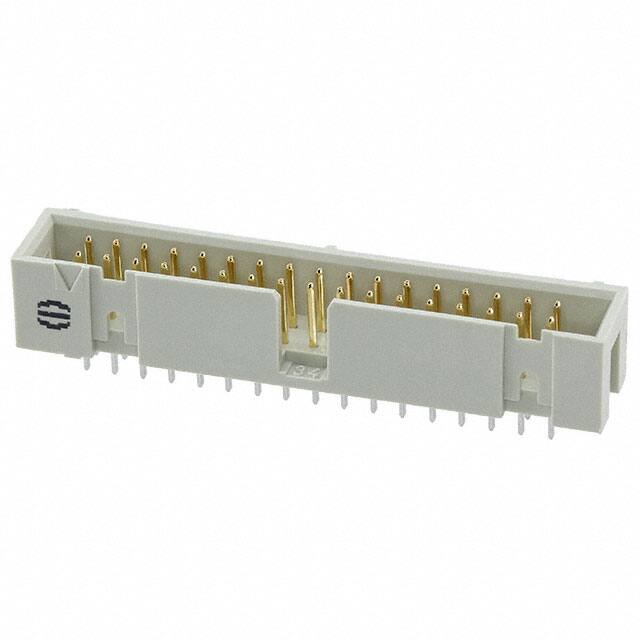

09185346324

Teknik Özellikler

Polarization Key

POLARIZED HOUSING

Özellikler

Keying Slot

Contact Type

Male Pin

Insulation Materials

Polybutylene Terephthalate (PBT), Glass Filled

Test Voltage

1kV

Voltage Rated Dc

350V

Number Of Pcb Rows

2

Contact Finish Post

Tin

Gender

Male

Housing Material

Polyester

Nem Hassasiyeti (MSL)

1 (Unlimited)

Sıra Sayısı

2

Contact Shape

Square

Fabrika Tedarik Süresi

4 Weeks

Working Voltage

350V

Shrouding

Shrouded - 4 Wall

Renk

Grey

Yükseklik

12.35mm

Contact Lengthmating

0.240 6.10mm

Contact Materials

Copper Alloy

Genişlik

50.8mm

Material Flammability Rating

UL94 V-0

Akım Değeri

1A

Ambalaj

Tray

Row Spacing Mating

0.100 (2.54mm)

Pcb Contact Pattern

RECTANGULAR

Hole Diameter

900 μm

Reliability

COMMERCIAL

Terminal

Solder

Montaj Tipi

Through Hole

Montaj

Through Hole

Insulation Height

0.350 8.89mm

Flammability Rating

UL94 V-0

Voltage Rated Ac

350V

Contact Current Rating

1A

Lead Pitch

2.54mm

Insulation Color

Gray

Seri

SEK

Insulation Resistance

1GOhm

Connector Type

Header
