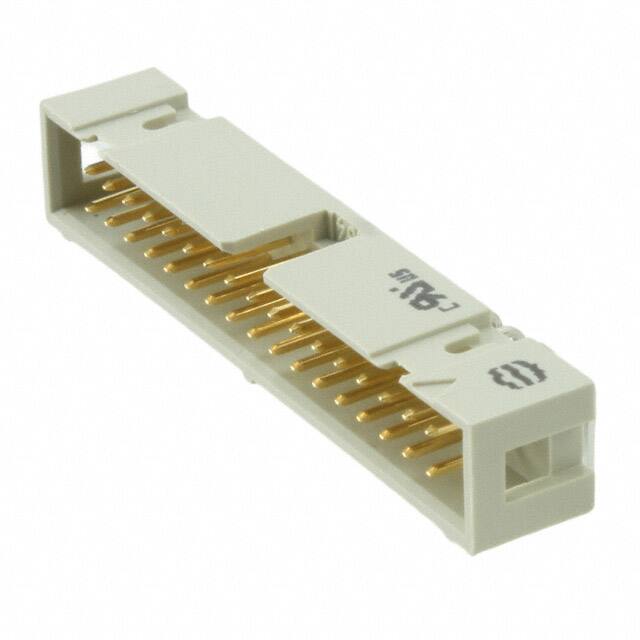

09185346323

Teknik Özellikler

Depth

11.99mm

RoHS Durumu

ROHS3 Compliant

Number Of Conductors

ONE

Additional Feature

STANDARDS: DIN EN 60603-13; IEC 60603-13, POLARIZED

Uzunluk

50.8mm

Çalışma Sıcaklığı

-55°C~125°C

Reach Svhc

No SVHC

Dielectric Withstanding Voltage

1000VAC V

Insulation Color

Gray

Seri

SEK

Montaj

Through Hole

Insulation Height

0.366 9.30mm

Flammability Rating

UL94 V-0

Voltage Rated Ac

350V

Contact Current Rating

1A

Lead Pitch

2.54mm

Filter Feature

NO

Insulation Resistance

1GOhm

Connector Type

Header

Mating Contact Pitch

0.1 inch

Parça Durumu

Active

Reference Standard

UL

Contact Resistance

20mOhm

Style

Board to Cable/Wire

Kurşunsuz Kodu

yes

Orientation

Right Angle

Mil Conformance

NO

Mixed Contacts

NO

Rated Current Signal

1A

Fastening Type

Latch Holder

Number Of Poles

34

Contact Plating

Gold

Pitch Mating

0.100 2.54mm

Contact Length Post

0.114 2.90mm

Number Of Positions Loaded

All

Number Of Pcb Rows

2

Insulation Materials

Polybutylene Terephthalate (PBT), Glass Filled

Test Voltage

1kV

Voltage Rated Dc

350V

Contact Shape

Square
