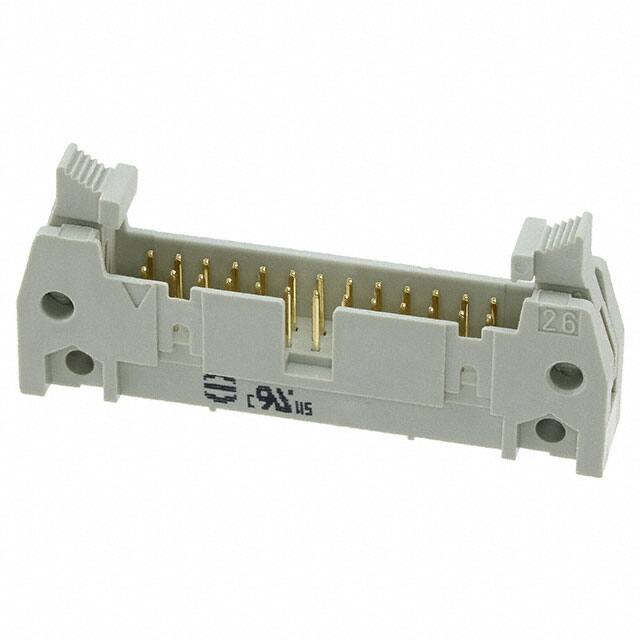

09185267913

Teknik Özellikler

Reference Standard

UL

Contact Resistance

20mOhm

Orientation

Right Angle

Mil Conformance

NO

Style

Board to Cable/Wire

Kurşunsuz Kodu

yes

Mixed Contacts

NO

Number Of Poles

26

Contact Plating

Gold

Rated Current Signal

1A

Fastening Type

Latch Lock/Eject Hooks, Short

Pitch Mating

0.100 2.54mm

Contact Length Post

0.114 2.90mm

Number Of Positions Loaded

All

Body Breadth

0.331 inch

Depth

23.3mm

Number Of Conductors

ONE

RoHS Durumu

ROHS3 Compliant

Uzunluk

52.6mm

Additional Feature

STANDARDS: IEC 60603-13; DIN EN 60603-13, POLARIZED

Çalışma Sıcaklığı

-55°C~125°C

Reach Svhc

No SVHC

Durability

50 Cycles

Seri

SEK

Dielectric Withstanding Voltage

1000VAC V

Insulation Color

Gray

Voltage Rated Ac

350V

Lead Pitch

2.54mm

Montaj

Through Hole

Insulation Height

0.335 8.51mm

Flammability Rating

UL94 V-0

Filter Feature

NO

Mating Contact Pitch

0.1 inch

Parça Durumu

Active

Insulation Resistance

1GOhm

Connector Type

Header

Ambalaj

Bulk

Akım Değeri

2A

Material Flammability Rating

UL94 V-0

Terminal

Solder
