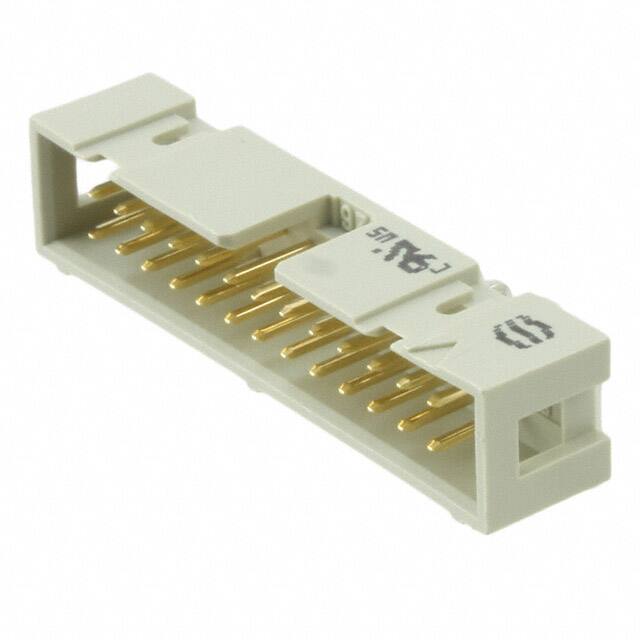

09185267323

Teknik Özellikler

Mating Contact Pitch

0.1 inch

Parça Durumu

Active

Insulation Resistance

1GOhm

Connector Type

Header

Filter Feature

NO

Voltage Rated Ac

350V

Lead Pitch

2.54mm

Insulation Height

0.366 9.30mm

Montaj

Through Hole

Flammability Rating

UL94 V-0

Durability

50 Cycles

Seri

SEK

Dielectric Withstanding Voltage

1000VAC V

Insulation Color

Gray

Çalışma Sıcaklığı

-55°C~125°C

Reach Svhc

No SVHC

Additional Feature

STANDARDS: DIN EN 60603-13; IEC 60603-13, POLARIZED

Uzunluk

40.64mm

Number Of Conductors

ONE

RoHS Durumu

ROHS3 Compliant

Length Tail

2.9mm

Depth

11.99mm

Lead Length

29mm

Contact Length Post

0.114 2.90mm

Number Of Positions Loaded

All

Pitch Mating

0.100 2.54mm

Number Of Poles

26

Contact Plating

Gold

Rated Current Signal

1A

Fastening Type

Latch Holder

Mixed Contacts

NO

Orientation

Right Angle

Mil Conformance

NO

Style

Board to Cable/Wire

Kurşunsuz Kodu

yes

Reference Standard

UL

Contact Resistance

20mOhm

Contact Type

Male Pin

Contact Finish Mating

NOT SPECIFIED

Polarization Key

CTR W/GUIDE SLOTS
