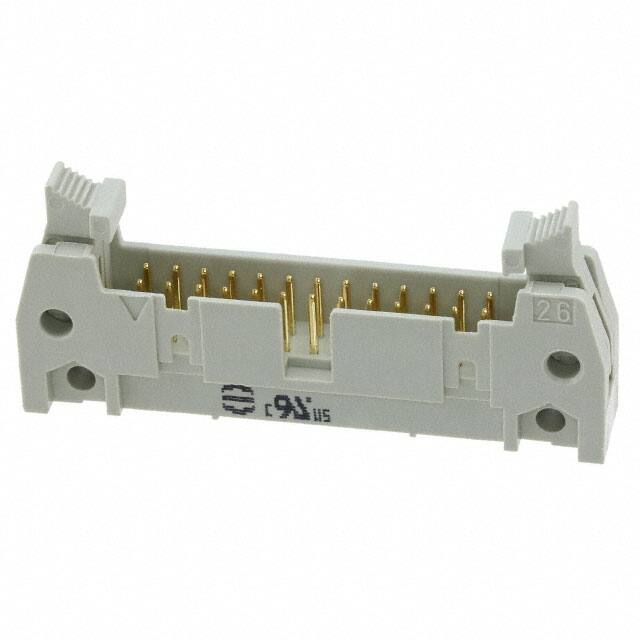

09185265913

Teknik Özellikler

Reference Standard

UL

Kurşunsuz Kodu

yes

Style

Board to Cable/Wire

Mil Conformance

NO

Mixed Contacts

NO

Fastening Type

Latch Lock/Eject Hooks, Short

Rated Current Signal

1A

Pitch Mating

0.100 2.54mm

Contact Length Post

0.114 2.90mm

Number Of Positions Loaded

All

Body Breadth

0.331 inch

RoHS Durumu

ROHS3 Compliant

Number Of Conductors

ONE

Additional Feature

STANDARDS: IEC 60603-13; DIN EN 60603-13, POLARIZED

Çalışma Sıcaklığı

-55°C~125°C

Plating Thickness

30μin

Insulation Color

Gray

Dielectric Withstanding Voltage

1000VAC V

Pozisyon Sayısı

26

Seri

SEK

Montaj

Through Hole

Insulation Height

0.335 8.51mm

Filter Feature

NO

Length Termination

0.114 inch

Insulation Resistance

1000000000Ohm

Connector Type

Header

Parça Durumu

Active

Mating Contact Pitch

0.1 inch

Ambalaj

Bulk

Material Flammability Rating

UL94 V-0

Reliability

COMMERCIAL

Row Spacing Mating

0.100 (2.54mm)

Pcb Contact Pattern

RECTANGULAR

Montaj Tipi

Through Hole, Right Angle

Terminal

Solder

Shrouding

Shrouded - 4 Wall

Contact Finish Thickness Mating

30.0μin 0.76μm

Din Conformance

YES

Fabrika Tedarik Süresi

7 Weeks

Body Depth

0.681 inch
