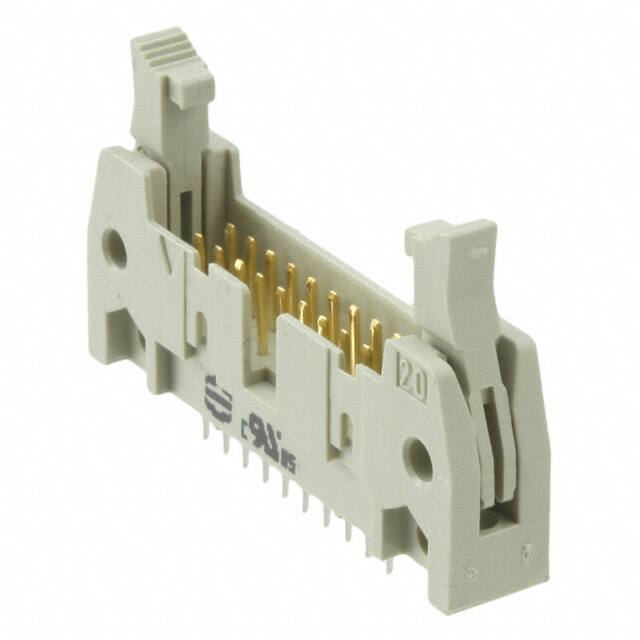

09185207904

Teknik Özellikler

HTS Kodu

8536.69.40.40

Pitch Mating

0.100 2.54mm

Contact Length Post

0.114 2.90mm

Number Of Positions Loaded

All

Lead Length

29mm

Reference Standard

UL

Contact Resistance

20mOhm

Orientation

Straight

Mil Conformance

NO

Style

Board to Cable/Wire

Kurşunsuz Kodu

yes

Overall Contact Length

0.650 16.51mm

Mixed Contacts

NO

Contact Plating

Gold

Number Of Poles

20

Rated Current Signal

1A

Fastening Type

Latch Lock/Eject Hooks, Long

Durability

50 Cycles

Seri

SEK

Dielectric Withstanding Voltage

1000VAC V

Insulation Color

Gray

Voltage Rated Ac

350V

Lead Pitch

2.54mm

Montaj

Through Hole

Insulation Height

0.681 17.30mm

Flammability Rating

UL94 V-0

Filter Feature

NO

Mating Contact Pitch

0.1 inch

Parça Durumu

Active

Connector Type

Header

Insulation Resistance

1GOhm

Depth

8.5mm

Body Breadth

0.331 inch

Number Of Conductors

ONE

RoHS Durumu

ROHS3 Compliant

Uzunluk

45mm

Additional Feature

STANDARDS: DIN EN 60603-13; IEC 60603-13, POLARIZED

Çalışma Sıcaklığı

-55°C~125°C

Reach Svhc

No SVHC

Shrouding

Shrouded - 4 Wall
