Adet bazlı fiyat
- 1+ adet$3.56
- 10+ adet$3.36
- 100+ adet$3.17
- 500+ adet$2.99
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği

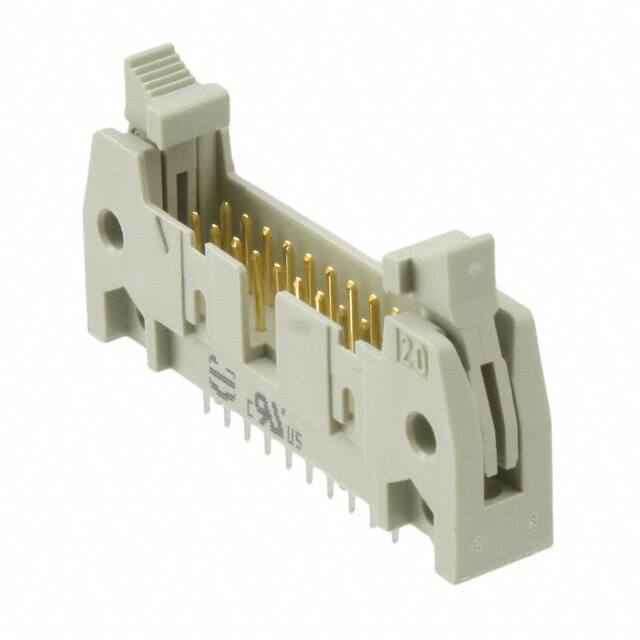

Teknik Özellikler
- Style
- Board to Cable/Wire
- Kurşunsuz Kodu
- yes
- Mil Conformance
- NO
- Orientation
- Straight
- Reference Standard
- UL
- Contact Resistance
- 20mOhm
- Rated Current Signal
- 2A
- Fastening Type
- Latch Lock/Eject Hooks, Short
- Contact Plating
- Gold
- Mixed Contacts
- NO
- Overall Contact Length
- 0.713 18.10mm
- Pitch Mating
- 0.100 2.54mm
- HTS Kodu
- 8536.69.40.40
- Contact Length Post
- 0.177 4.50mm
- Number Of Positions Loaded
- All
- RoHS Durumu
- ROHS3 Compliant
- Number Of Conductors
- ONE
- Depth
- 8.5mm
- Body Breadth
- 0.335 inch
- Çalışma Sıcaklığı
- -55°C~125°C
- Reach Svhc
- No SVHC
- Additional Feature
- STANDARDS: DIN EN 60603-13; IEC 60603-13, POLARIZED
- Uzunluk
- 45mm
- Insulation Height
- 0.681 17.30mm
- Montaj
- Through Hole
- Pozisyon Sayısı
- 20
- Insulation Color
- Gray
- Seri
- SEK
- Max Current Rating
- 1A
- Insulation Resistance
- 1000000000Ohm
- Connector Type
- Header
- Mating Contact Pitch
- 0.1 inch
- Parça Durumu
- Active
- Filter Feature
- NO
- Material Flammability Rating
- UL94 V-0
- Akım Değeri
- 2A
- Ambalaj
- Bulk
- Pcb Contact Pattern
- RECTANGULAR
- Row Spacing Mating
- 0.100 (2.54mm)
- Reliability
- COMMERCIAL
