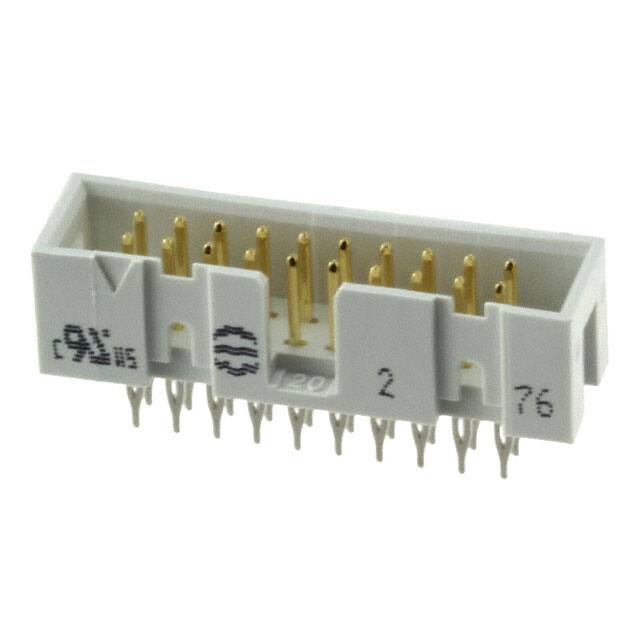

09185206329

Teknik Özellikler

Polarization Key

POLARIZED HOUSING

Ul Flammability Code

94V-0

Özellikler

Keying Slot

Contact Type

Male Pin

Min. Çalışma Sıcaklığı

-55°C

Contact Finish Mating

NOT SPECIFIED

Insulation Materials

Polybutylene Terephthalate (PBT), Glass Filled

Number Of Pcb Rows

2

Contact Finish Post

Tin

Nem Hassasiyeti (MSL)

1 (Unlimited)

Housing Material

Polybutylene

Sıra Sayısı

2

Contact Shape

Square

Option

GENERAL PURPOSE

Din Conformance

YES

Fabrika Tedarik Süresi

7 Weeks

Shrouding

Shrouded - 4 Wall

Iec Conformance

NO

Renk

Grey

Contact Lengthmating

0.240 6.10mm

Contact Materials

Copper Alloy

Material Flammability Rating

UL94 V-0

Akım Değeri

2A

Ambalaj

Bulk

Pcb Contact Pattern

RECTANGULAR

Row Spacing Mating

0.100 (2.54mm)

Reliability

COMMERCIAL

Terminal

Press-Fit, Solder

Montaj Tipi

Through Hole

Montaj

Through Hole

Insulation Height

0.350 8.89mm

Pozisyon Sayısı

20

Insulation Color

Gray

Seri

SEK

Max Current Rating

1A

Connector Type

Header

Insulation Resistance

1000000000Ohm

Mating Contact Pitch

0.1 inch

Parça Durumu

Active

Filter Feature

NO
