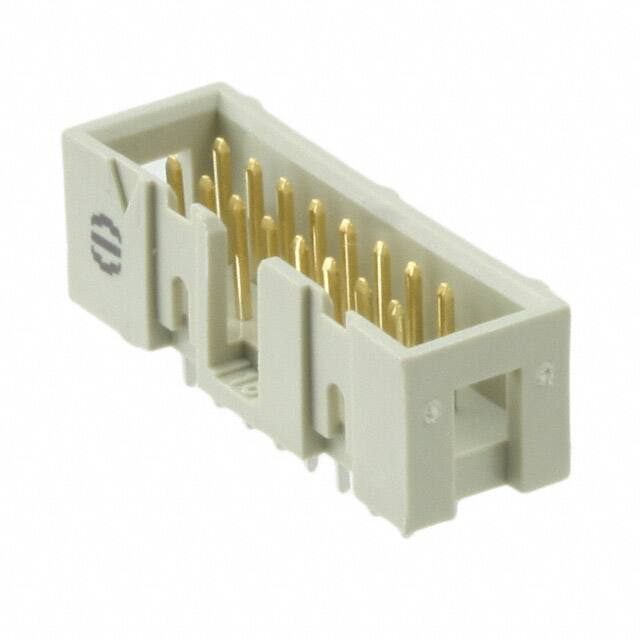

09185167324

Teknik Özellikler

Özellikler

Keying Slot

Ul Flammability Code

94V-0

Polarization Key

POLARIZED HOUSING

Contact Finish Mating

NOT SPECIFIED

Contact Type

Male Pin

Number Of Pcb Rows

2

Contact Finish Post

Tin

Insulation Materials

Polybutylene Terephthalate (PBT), Glass Filled

Voltage Rated Dc

350V

Contact Shape

Square

Option

GENERAL PURPOSE

Nem Hassasiyeti (MSL)

1 (Unlimited)

Sıra Sayısı

2

Working Voltage

350V

Shrouding

Shrouded - 4 Wall

Din Conformance

YES

Fabrika Tedarik Süresi

4 Weeks

Contact Lengthmating

0.240 6.10mm

Contact Materials

Copper Alloy

Iec Conformance

YES

Renk

Grey

Ambalaj

Tray

Material Flammability Rating

UL94 V-0

Akım Değeri

1A

Row Spacing Mating

0.100 (2.54mm)

Pcb Contact Pattern

RECTANGULAR

Reliability

COMMERCIAL

Hole Diameter

900 μm

Terminal

Solder

Montaj Tipi

Through Hole

Insulation Color

Gray

Seri

SEK

Durability

50 Cycles

Insulation Height

0.350 8.89mm

Montaj

Through Hole

Flammability Rating

UL94 V-0

Voltage Rated Ac

350V

Lead Pitch

2.54mm

Filter Feature

NO

Connector Type

Header
