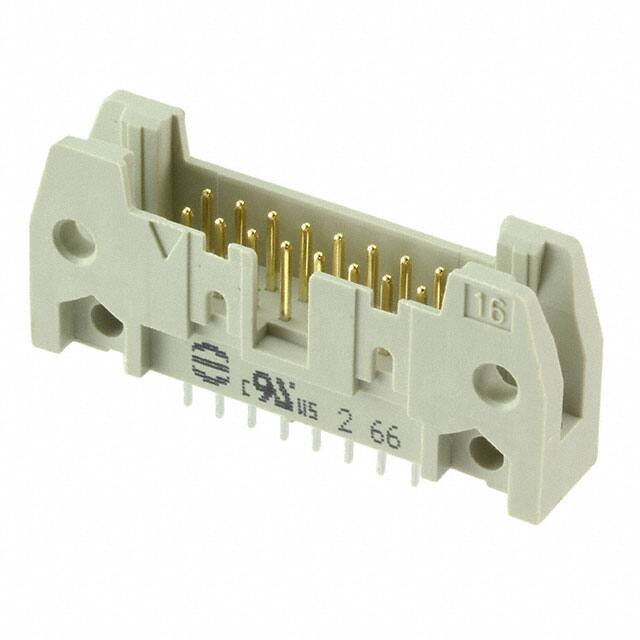

09185166924

Teknik Özellikler

Sıra Sayısı

2

Nem Hassasiyeti (MSL)

1 (Unlimited)

Housing Material

Polyester

Option

GENERAL PURPOSE

Contact Shape

Square

Insulation Materials

Polybutylene Terephthalate (PBT), Glass Filled

Contact Finish Post

Tin

Number Of Pcb Rows

2

Contact Gender

Male

Contact Type

Male Pin

Contact Finish Mating

NOT SPECIFIED

Polarization Key

POLARIZED HOUSING

Ul Flammability Code

94V-0

Özellikler

Keying Slot, Mounting Flange

Montaj Tipi

Through Hole

Terminal

Solder

Reliability

COMMERCIAL

Pcb Contact Pattern

RECTANGULAR

Row Spacing Mating

0.100 (2.54mm)

Akım Değeri

2A

Material Flammability Rating

UL94 V-0

Ambalaj

Bulk

Renk

Grey

Iec Conformance

YES

Contact Materials

Copper Alloy

Contact Lengthmating

0.240 6.10mm

Fabrika Tedarik Süresi

7 Weeks

Body Depth

0.681 inch

Din Conformance

YES

ECCN Kodu

EAR99

Shrouding

Shrouded - 4 Wall

Body Length Or Diameter

1.571 inch

Çalışma Sıcaklığı

-55°C~125°C

Additional Feature

STANDARDS: DIN EN 60603-13; IEC 60603-13, POLARIZED

Number Of Conductors

ONE

RoHS Durumu

ROHS3 Compliant

Body Breadth

0.335 inch

Parça Durumu

Active

Mating Contact Pitch

0.1 inch

Insulation Resistance

1000000000Ohm
