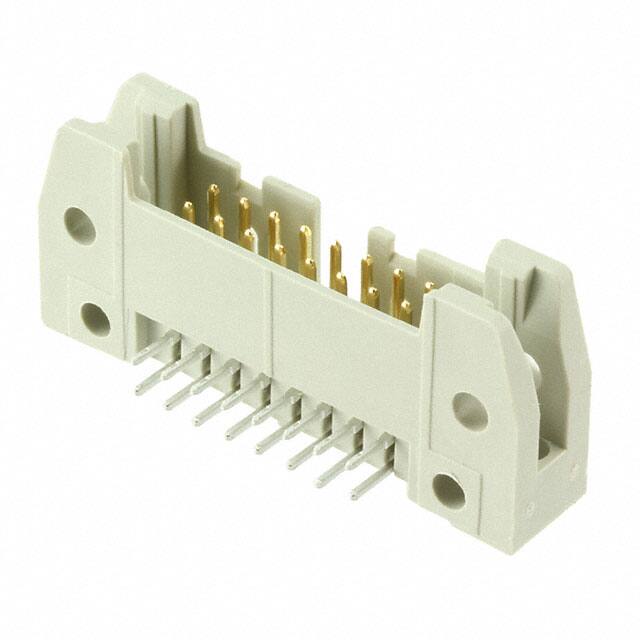

09185166923

Teknik Özellikler

Contact Length Post

0.114 2.90mm

Number Of Positions Loaded

All

Pitch Mating

0.100 2.54mm

HTS Kodu

8536.69.40.40

Rated Current Signal

2A

Fastening Type

Push-Pull

Mixed Contacts

NO

Orientation

Right Angle

Mil Conformance

NO

Style

Board to Cable/Wire

Kurşunsuz Kodu

yes

Reference Standard

UL

Mating Contact Pitch

0.1 inch

Parça Durumu

Active

Insulation Resistance

1000000000Ohm

Connector Type

Header

Length Termination

0.114 inch

Filter Feature

NO

Montaj

Through Hole

Insulation Height

0.335 8.51mm

Seri

SEK

Pozisyon Sayısı

16

Insulation Color

Gray

Çalışma Sıcaklığı

-55°C~125°C

Additional Feature

STANDARDS: IEC 60603-13; DIN EN 60603-13, POLARIZED

Number Of Conductors

ONE

RoHS Durumu

ROHS3 Compliant

Body Breadth

0.335 inch

Iec Conformance

YES

Renk

Grey

Contact Materials

Copper Alloy

Contact Lengthmating

0.240 6.10mm

Body Depth

0.681 inch

Fabrika Tedarik Süresi

4 Weeks

Din Conformance

YES

ECCN Kodu

EAR99

Shrouding

Shrouded - 4 Wall

Body Length Or Diameter

1.571 inch

Terminal

Solder

Montaj Tipi

Through Hole, Right Angle
