Adet bazlı fiyat
- 1+ adet$1.97
- 10+ adet$1.86
- 100+ adet$1.75
- 500+ adet$1.65
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği

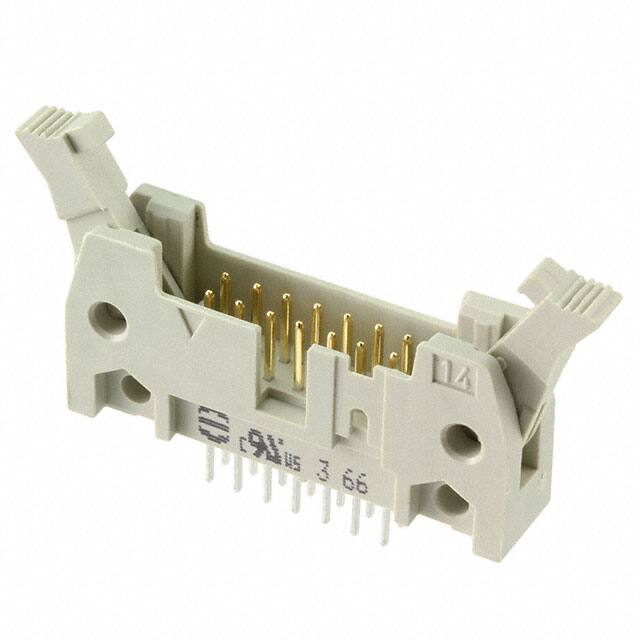

Teknik Özellikler
- Additional Feature
- STANDARD: IEC 60603-3
- Uzunluk
- 37.4mm
- Çalışma Sıcaklığı
- -55°C~125°C
- Reach Svhc
- No SVHC
- Body Breadth
- 0.331 inch
- Depth
- 8.5mm
- RoHS Durumu
- ROHS3 Compliant
- Number Of Conductors
- ONE
- Filter Feature
- NO
- Insulation Resistance
- 1GOhm
- Connector Type
- Header
- Mating Contact Pitch
- 0.1 inch
- Parça Durumu
- Active
- Pozisyon Sayısı
- 14
- Dielectric Withstanding Voltage
- 1000VAC V
- Insulation Color
- Gray
- Durability
- 50 Cycles
- Seri
- SEK
- Montaj
- Through Hole
- Insulation Height
- 0.681 17.30mm
- Flammability Rating
- UL94 V-0
- Voltage Rated Ac
- 350V
- Lead Pitch
- 2.54mm
- Mixed Contacts
- NO
- Overall Contact Length
- 0.650 16.51mm
- Rated Current Signal
- 1A
- Fastening Type
- Latch Lock/Eject Hooks, Long
- Contact Plating
- Gold
- Reference Standard
- UL
- Contact Resistance
- 20mOhm
- Style
- Board to Cable/Wire
- Kurşunsuz Kodu
- yes
- Orientation
- Straight
- Mil Conformance
- NO
- Contact Length Post
- 0.114 2.90mm
- Number Of Positions Loaded
- All
- Lead Length
- 29mm
- Pitch Mating
- 0.100 2.54mm
- HTS Kodu
- 8536.69.40.40
- Contact Shape
- Square
