Adet bazlı fiyat
- 1+ adet$1.81
- 10+ adet$1.70
- 100+ adet$1.61
- 500+ adet$1.52
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği

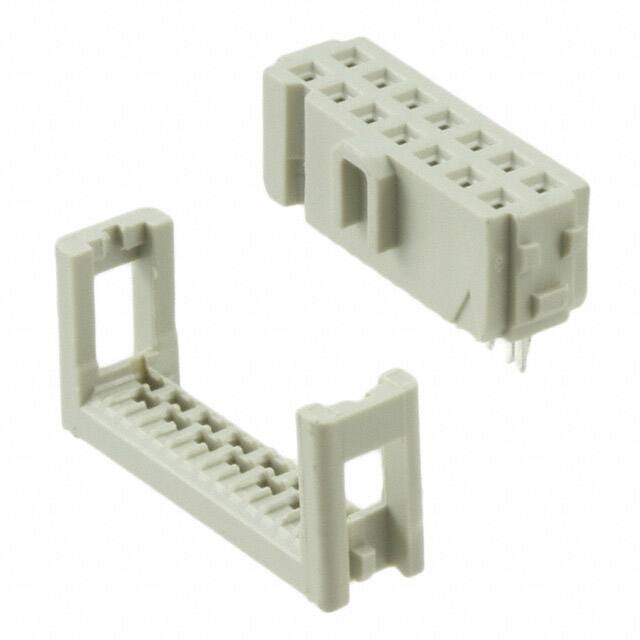

Teknik Özellikler
- Reach Svhc
- No SVHC
- Additional Feature
- STANDARD: IEC 60603-13; DIN EN 60603-13, POLARIZED
- Uzunluk
- 22.4mm
- Wire Gauge Max
- 28 AWG
- RoHS Durumu
- ROHS3 Compliant
- Depth
- 7.2mm
- Parça Durumu
- Active
- Max Current Rating
- 1A
- Insulation Resistance
- 1GOhm
- Connector Type
- Receptacle
- Bodyshell Style
- PLUG
- Wire Gauge Min
- 26 AWG
- Filter Feature
- NO
- Wire Gauge
- 26-28 AWG
- Voltage Rated Ac
- 350V
- Contact Current Rating
- 1A
- Lead Pitch
- 2.54mm
- Montaj
- Cable, Free Hanging
- Flammability Rating
- UL94 V-0
- Seri
- SEK
- Durability
- 50 Cycles
- Number Of Poles
- 14
- Contact Plating
- Gold
- Rated Current Signal
- 2A
- Maks. Çalışma Sıcaklığı
- 125°C
- Mixed Contacts
- NO
- Orientation
- Right Angle
- Mil Conformance
- NO
- Kurşunsuz Kodu
- yes
- Reference Standard
- UL
- Contact Resistance
- 20mOhm
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Housing Material
- Polybutylene
- Sıra Sayısı
- 2
- Option
- GENERAL PURPOSE
- Voltage Rated Dc
- 350V
- Total Number Of Contacts
- 14
- Row Spacing
- 0.100 (2.54mm)
- Contact Type
- Female Socket
- Contact Finish Mating
- NOT SPECIFIED
