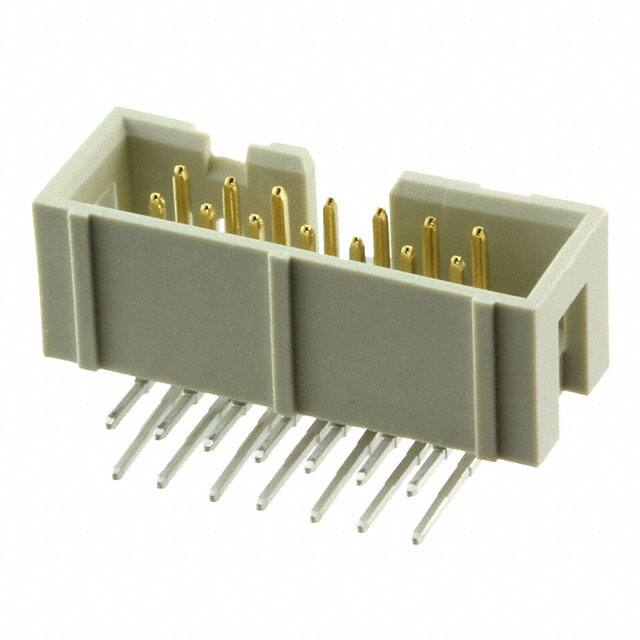

09185147323

Teknik Özellikler

Reach Svhc

No SVHC

Çalışma Sıcaklığı

-55°C~125°C

Uzunluk

25.4mm

Additional Feature

STANDARDS: DIN EN 60603-13; IEC 60603-13

Number Of Conductors

ONE

RoHS Durumu

ROHS3 Compliant

Depth

11.99mm

Length Tail

2.9mm

Parça Durumu

Active

Mating Contact Pitch

0.1 inch

Connector Type

Header

Insulation Resistance

1GOhm

Filter Feature

NO

Lead Pitch

2.54mm

Voltage Rated Ac

350V

Flammability Rating

UL94 V-0

Montaj

Through Hole

Insulation Height

0.366 9.30mm

Durability

50 Cycles

Seri

SEK

Dielectric Withstanding Voltage

1000VAC V

Insulation Color

Gray

Contact Plating

Gold

Number Of Poles

14

Fastening Type

Latch Holder

Rated Current Signal

1A

Mixed Contacts

NO

Mil Conformance

NO

Orientation

Right Angle

Kurşunsuz Kodu

yes

Style

Board to Cable/Wire

Contact Resistance

20mOhm

Reference Standard

UL

Lead Length

29mm

Contact Length Post

0.114 2.90mm

Number Of Positions Loaded

All

Pitch Mating

0.100 2.54mm

Sıra Sayısı

2

Nem Hassasiyeti (MSL)

1 (Unlimited)

Option

GENERAL PURPOSE
