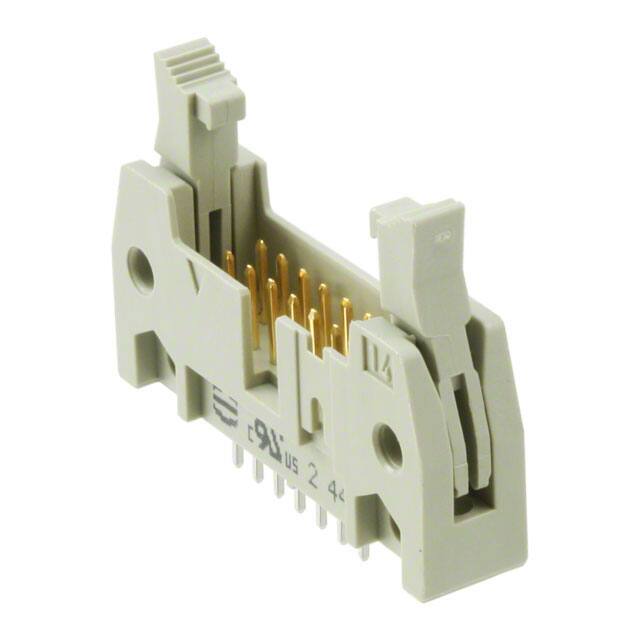

09185146902

Teknik Özellikler

HTS Kodu

8536.69.40.40

Pitch Mating

0.100 2.54mm

Number Of Positions Loaded

All

Contact Length Post

0.177 4.50mm

Orientation

Straight

Mil Conformance

NO

Kurşunsuz Kodu

yes

Style

Board to Cable/Wire

Reference Standard

UL

Fastening Type

Latch Lock/Eject Hooks, Long

Rated Current Signal

1A

Mixed Contacts

NO

Overall Contact Length

0.713 18.10mm

Montaj

Through Hole

Insulation Height

0.681 17.30mm

Seri

SEK

Insulation Color

Gray

Dielectric Withstanding Voltage

1000VAC V

Pozisyon Sayısı

14

Parça Durumu

Active

Mating Contact Pitch

0.1 inch

Connector Type

Header

Insulation Resistance

1000000000Ohm

Filter Feature

NO

Number Of Conductors

ONE

RoHS Durumu

ROHS3 Compliant

Body Breadth

0.331 inch

Depth

8.5mm

Reach Svhc

No SVHC

Çalışma Sıcaklığı

-55°C~125°C

Additional Feature

STANDARD: IEC 60603-3

Uzunluk

37.4mm

Fabrika Tedarik Süresi

7 Weeks

ECCN Kodu

EAR99

Din Conformance

YES

Shrouding

Shrouded - 4 Wall

Renk

Grey

Iec Conformance

YES

Contact Materials

Copper Alloy

Contact Lengthmating

0.240 6.10mm
