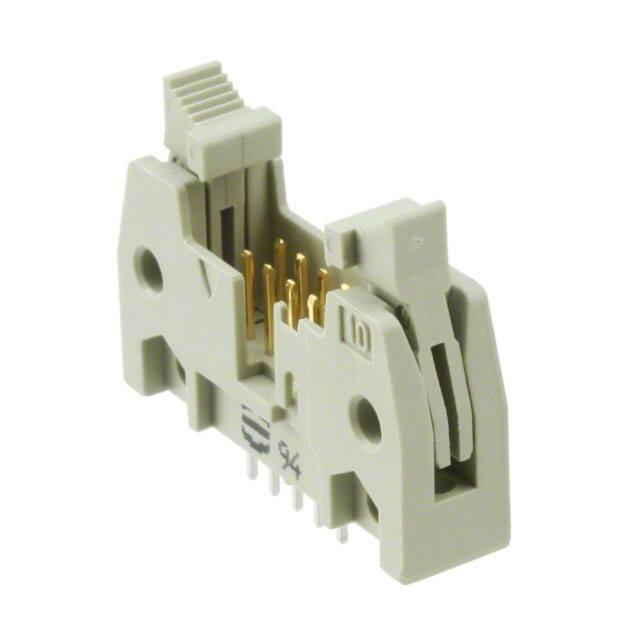

09185107914

Teknik Özellikler

Contact Length Post

0.114 2.90mm

Number Of Positions Loaded

All

Pitch Mating

0.100 2.54mm

Mixed Contacts

NO

Overall Contact Length

0.650 16.51mm

Number Of Poles

10

Contact Plating

Gold

Fastening Type

Latch Lock/Eject Hooks, Short

Rated Current Signal

2A

Contact Resistance

20mOhm

Reference Standard

UL

Orientation

Straight

Mil Conformance

NO

Kurşunsuz Kodu

yes

Style

Board to Cable/Wire

Filter Feature

NO

Parça Durumu

Active

Mating Contact Pitch

0.1 inch

Insulation Resistance

1GOhm

Connector Type

Header

Max Current Rating

1A

Durability

50 Cycles

Seri

SEK

Insulation Color

Gray

Lead Pitch

2.54mm

Voltage Rated Ac

350V

Flammability Rating

UL94 V-0

Insulation Height

0.681 17.30mm

Montaj

Through Hole

Additional Feature

STANDARDS: DIN EN 60603-13; IEC 60603-13

Uzunluk

32.3mm

Reach Svhc

No SVHC

Çalışma Sıcaklığı

-55°C~125°C

Body Breadth

0.335 inch

Depth

8.5mm

Number Of Conductors

ONE

RoHS Durumu

ROHS3 Compliant

Contact Materials

Copper Alloy

Contact Lengthmating

0.228 5.80mm

Renk

Grey
