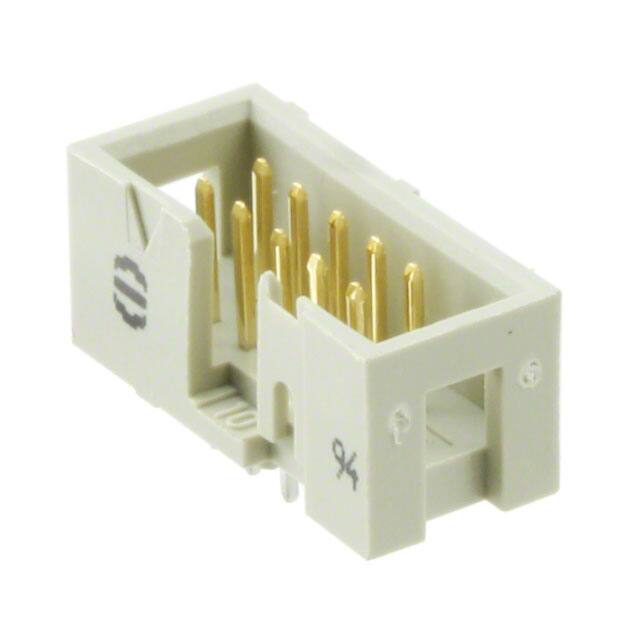

09185107324

Teknik Özellikler

Reach Svhc

No SVHC

Çalışma Sıcaklığı

-55°C~125°C

Uzunluk

20.32mm

Additional Feature

STANDARD: IEC 60603-13; DIN EN 60603-13

Number Of Conductors

ONE

RoHS Durumu

ROHS3 Compliant

Depth

9.2mm

Body Breadth

0.366 inch

Parça Durumu

Active

Mating Contact Pitch

0.1 inch

Insulation Resistance

1GOhm

Connector Type

Header

Filter Feature

NO

Lead Pitch

2.54mm

Voltage Rated Ac

350V

Flammability Rating

UL94 V-0

Montaj

Through Hole

Insulation Height

0.350 8.89mm

Seri

SEK

Durability

50 Cycles

Insulation Color

Gray

Pozisyon Sayısı

10

Contact Plating

Gold

Fastening Type

Latch Holder

Rated Current Signal

2A

Mixed Contacts

NO

Orientation

Straight

Mil Conformance

NO

Kurşunsuz Kodu

yes

Style

Board to Cable/Wire

Contact Resistance

20mOhm

Reference Standard

UL

Number Of Positions Loaded

All

Contact Length Post

0.114 2.90mm

Pitch Mating

0.100 2.54mm

Sıra Sayısı

2

Nem Hassasiyeti (MSL)

1 (Unlimited)

Option

GENERAL PURPOSE

Contact Shape

Square

Voltage Rated Dc

350V
