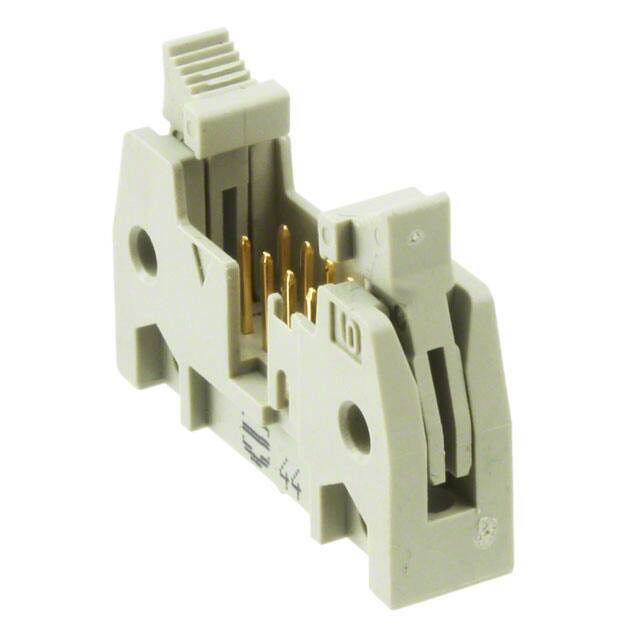

09185106913

Teknik Özellikler

Contact Finish Mating

NOT SPECIFIED

Contact Type

Male Pin

Contact Gender

Male

Özellikler

Keying Slot, Mounting Flange

Ul Flammability Code

94V-0

Polarization Key

CTR W/GUIDE SLOTS

Contact Shape

Square

Option

GENERAL PURPOSE

Housing Material

Polybutylene

Nem Hassasiyeti (MSL)

1 (Unlimited)

Sıra Sayısı

2

Number Of Pcb Rows

2

Insulation Materials

Polybutylene Terephthalate (PBT), Glass Filled

Contact Lengthmating

0.240 6.10mm

Contact Materials

Copper Alloy

Iec Conformance

YES

Shrouding

Shrouded - 4 Wall

ECCN Kodu

EAR99

Din Conformance

YES

Fabrika Tedarik Süresi

7 Weeks

Row Spacing Mating

0.100 (2.54mm)

Pcb Contact Pattern

RECTANGULAR

Reliability

COMMERCIAL

Terminal

Solder

Montaj Tipi

Through Hole, Right Angle

Ambalaj

Bulk

Material Flammability Rating

UL94 V-0

Akım Değeri

2A

Filter Feature

NO

Max Current Rating

1A

Connector Type

Header

Mating Contact Pitch

0.1 inch

Parça Durumu

Active

Pozisyon Sayısı

10

Insulation Color

Gray

Seri

SEK

Montaj

Through Hole

Insulation Height

0.335 8.51mm

Uzunluk

32.3mm

Additional Feature

STANDARDS: IEC 60603-13; DIN EN 60603-13
