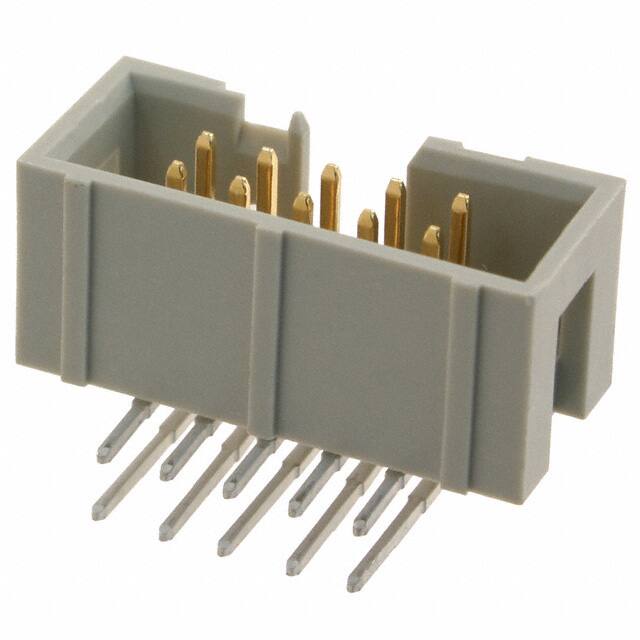

09185106323

Teknik Özellikler

Lead Length

29mm

Contact Length Post

0.114 2.90mm

Number Of Positions Loaded

All

Pitch Mating

0.100 2.54mm

Contact Plating

Gold

Number Of Poles

10

Rated Current Signal

1A

Fastening Type

Latch Holder

Mixed Contacts

NO

Mil Conformance

NO

Orientation

Right Angle

Style

Board to Cable/Wire

Kurşunsuz Kodu

yes

Reference Standard

UL

Contact Resistance

20mOhm

Mating Contact Pitch

0.1 inch

Parça Durumu

Active

Max Current Rating

1A

Connector Type

Header

Insulation Resistance

1GOhm

Filter Feature

NO

Voltage Rated Ac

350V

Contact Current Rating

1A

Lead Pitch

2.54mm

Montaj

Through Hole

Insulation Height

0.366 9.30mm

Flammability Rating

UL94 V-0

Seri

SEK

Insulation Color

Gray

Çalışma Sıcaklığı

-55°C~125°C

Reach Svhc

No SVHC

Uzunluk

20.32mm

Additional Feature

STANDARDS: DIN EN 60603-13; IEC 60603-13

Number Of Conductors

ONE

RoHS Durumu

ROHS3 Compliant

Depth

11.99mm

Iec Conformance

YES

Kurşunsuz

Lead Free

Renk

Grey

Contact Materials

Copper Alloy
