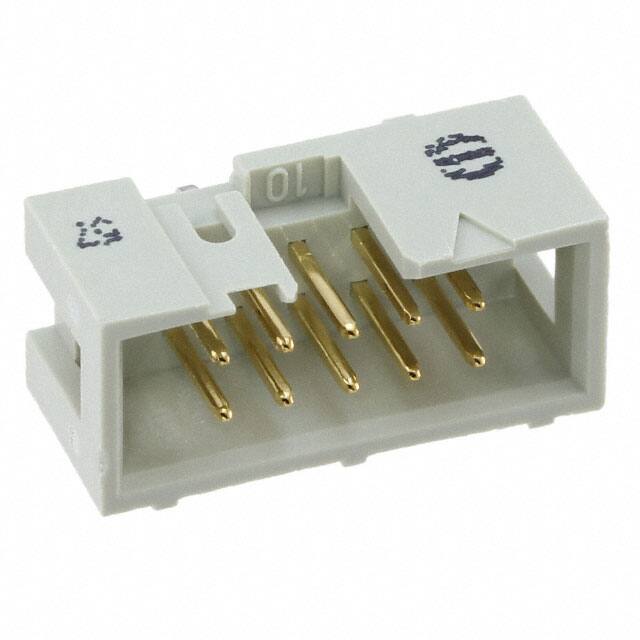

09185105323

Teknik Özellikler

Insulation Color

Gray

Pozisyon Sayısı

10

Seri

SEK

Insulation Height

0.366 9.30mm

Montaj

Through Hole

Filter Feature

NO

Connector Type

Header

Parça Durumu

Active

Mating Contact Pitch

0.1 inch

Depth

11.99mm

RoHS Durumu

ROHS3 Compliant

Number Of Conductors

ONE

Uzunluk

20.32mm

Additional Feature

STANDARDS: DIN EN 60603-13; IEC 60603-13

Reach Svhc

No SVHC

Çalışma Sıcaklığı

-55°C~125°C

Plating Thickness

30μin

Pitch Mating

0.100 2.54mm

Number Of Positions Loaded

All

Contact Length Post

0.114 2.90mm

Reference Standard

UL

Kurşunsuz Kodu

yes

Style

Board to Cable/Wire

Orientation

Right Angle

Mil Conformance

NO

Mixed Contacts

NO

Fastening Type

Latch Holder

Rated Current Signal

1A

Ul Flammability Code

94V-0

Özellikler

Keying Slot

Polarization Key

CTR W/GUIDE SLOTS

Contact Finish Mating

Gold

Contact Type

Male Pin

Number Of Pcb Rows

2

Gender

Male

Contact Finish Post

Tin

Insulation Materials

Polybutylene Terephthalate (PBT), Glass Filled

Contact Shape

Square

Option

GENERAL PURPOSE

Sıra Sayısı

2
