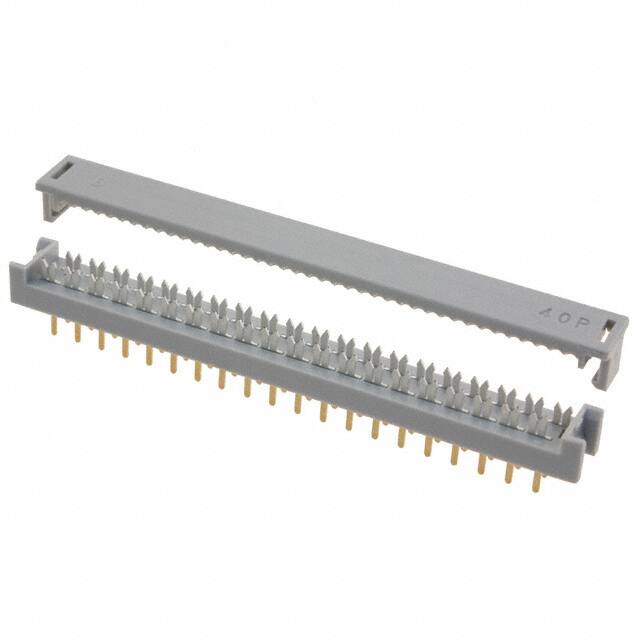

09181409622

Teknik Özellikler

Özellikler

Feed Through

Polarization Key

POLARIZED HOUSING

Contact Finish Mating

NOT SPECIFIED

Min. Çalışma Sıcaklığı

-55°C

Cable Termination

IDC

Row Spacing

0.100 (2.54mm)

Gender

Male

Number Of Pcb Rows

2

Total Number Of Contacts

40

Test Voltage

1kV

Nem Hassasiyeti (MSL)

1 (Unlimited)

Housing Material

Polybutylene

Sıra Sayısı

2

Fabrika Tedarik Süresi

4 Weeks

Contact Pattern

RECTANGULAR

Contact Materials

Nickel, Tin

Pitch

2.54mm

Yükseklik

5.5mm

Renk

Grey

Ambalaj

Tray

Akım Değeri

1A

Genişlik

56.1mm

Terminal

Through Hole

Montaj Tipi

Through Hole

Boardside Pitch

0.100 2.54mm

Pcb Contact Pattern

RECTANGULAR

Reliability

COMMERCIAL

Hole Diameter

1 mm

Seri

SEK

Pozisyon Sayısı

40

Lead Pitch

2.54mm

Montaj

PCB, Through Hole

Flammability Rating

UL94 V-0

Pcb Thickness

127mm

Parça Durumu

Active

Max Current Rating

1A

Connector Type

Ribbon Cable, DIP Header

Insulation Resistance

10MOhm

Depth

6.1mm

Number Of Conductors

ONE
