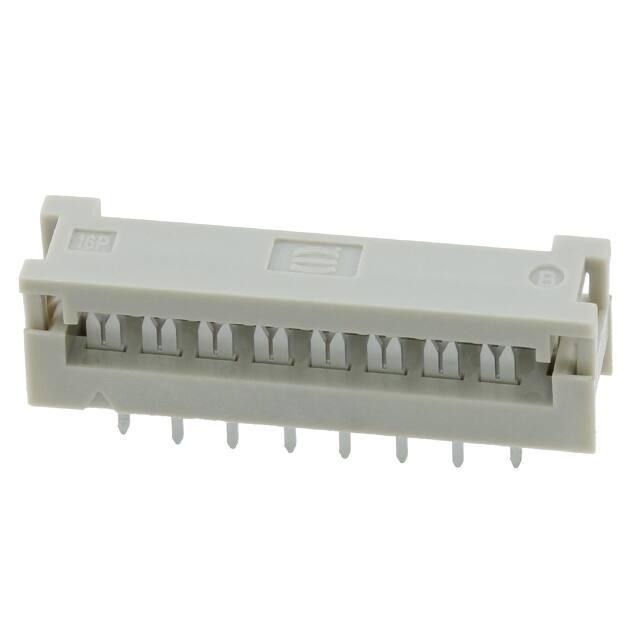

09181169422

Teknik Özellikler

Özellikler

Feed Through

Polarization Key

POLARIZED HOUSING

Contact Finish Mating

NOT SPECIFIED

Cable Termination

IDC

Row Spacing

0.100 (2.54mm)

Operating Temperature Min

-55°C

Gender

Receptacle

Total Number Of Contacts

16

Number Of Pcb Rows

2

Option

GENERAL PURPOSE

Sıra Sayısı

2

Nem Hassasiyeti (MSL)

1 (Unlimited)

Housing Material

Thermoplastic

Body Length Or Diameter

1.009 inch

Fabrika Tedarik Süresi

7 Weeks

Body Depth

0.177 inch

Din Conformance

NO

ECCN Kodu

EAR99

Contact Pattern

RECTANGULAR

Contact Materials

Nickel

Pitch

2.54mm

Yükseklik

5.5mm

Iec Conformance

NO

Ambalaj

Bulk

Akım Değeri

2A

Insulator Color

GRAY

Montaj Tipi

Through Hole, Kinked Pin

Boardside Pitch

0.100 2.54mm

Terminal

Through Hole

Reliability

COMMERCIAL

Pcb Contact Pattern

RECTANGULAR

Seri

SEK

Pozisyon Sayısı

16

Montaj

Through Hole

Filter Feature

NO

Length Termination

0.13 inch

Parça Durumu

Active

Connector Type

Ribbon Cable, DIP Header

Operating Temperature Max

105°C

Number Of Conductors

ONE
