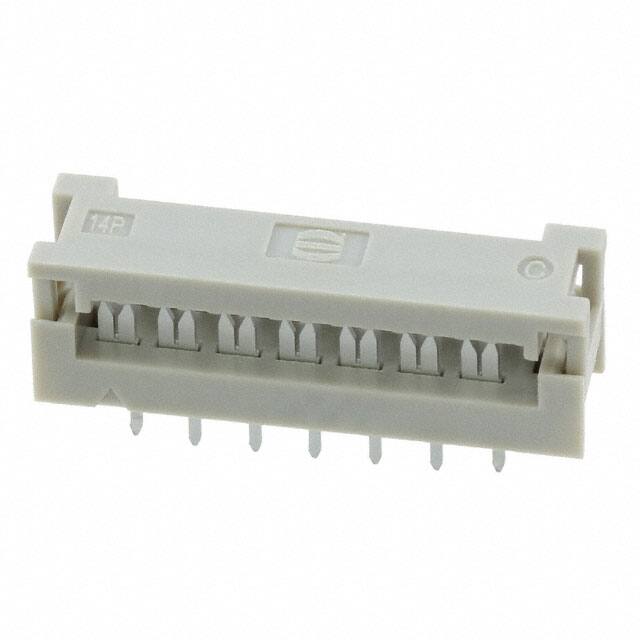

09181149422

Teknik Özellikler

Number Of Conductors

ONE

RoHS Durumu

ROHS3 Compliant

Operating Temperature Max

105°C

Reach Svhc

No SVHC

Additional Feature

LOW PROFILE

Montaj

Through Hole

Seri

SEK

Pozisyon Sayısı

14

Parça Durumu

Active

Connector Type

Ribbon Cable, DIP Header

Length Termination

0.13 inch

Filter Feature

NO

Mil Conformance

NO

Reference Standard

UL

Contact Resistance

10mOhm

Contact Style

IDC

Rated Current Signal

2A

Mixed Contacts

NO

HTS Kodu

8536.69.40.40

Number Of Positions Loaded

All

Gender

Receptacle

Number Of Pcb Rows

2

Total Number Of Contacts

14

Nem Hassasiyeti (MSL)

1 (Unlimited)

Housing Material

Thermoplastic

Sıra Sayısı

2

Option

GENERAL PURPOSE

Polarization Key

POLARIZED HOUSING

Özellikler

Feed Through

Row Spacing

0.100 (2.54mm)

Operating Temperature Min

-55°C

Contact Finish Mating

NOT SPECIFIED

Cable Termination

IDC

Akım Değeri

2A

Ambalaj

Bulk

Terminal

Through Hole

Boardside Pitch

0.100 2.54mm

Montaj Tipi

Through Hole, Kinked Pin

Pcb Contact Pattern

RECTANGULAR

Reliability

COMMERCIAL
