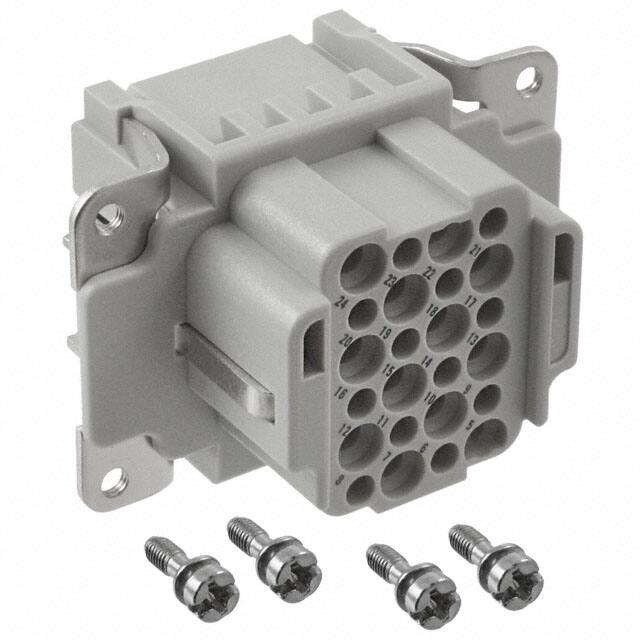

09160243101

Teknik Özellikler

Mounting Option2

LOCKING

Material

Thermoplastic

Terminal Stili

Crimp

Pin Sayısı

24

Gender

Female

Renk

Gray

Max Current Rating

10A

Çalışma Sıcaklığı

-40°C~125°C

Connector Type

Insert without Contacts

Wire Gauge Max

14 AWG

Material Flammability Rating

UL94 V-0

Contact Materials

Copper

Depth

36.1mm

Contact Resistance

3MOhm

RoHS Durumu

ROHS3 Compliant

Din Conformance

NO

Contact Plating

Silver

Number Of Conductors

ONE

Contact Finish Mating

NOT SPECIFIED

Mounting Option1

DETENT

Ratings

IP65

Durability

500 Cycles

Wire Gauge Min

26 AWG

Bodyshell Style

PLUG

Seri

Han® DD

Test Voltage

2kV

Ambalaj

Bulk

Total Number Of Contacts

24

Option

GENERAL PURPOSE

Flammability Rating

UL94 V-0

Iec Conformance

NO

Reference Standard

UL, CSA

Board Mounting Option

MOUNTING FLANGE

Orientation

Straight

Dielectric Withstanding Voltage

4000VAC V

Reach Svhc

No SVHC

Housing Material

Polycarbonate (PC)

Uzunluk

51mm

ECCN Kodu

EAR99

Voltage Rated Dc

250V
