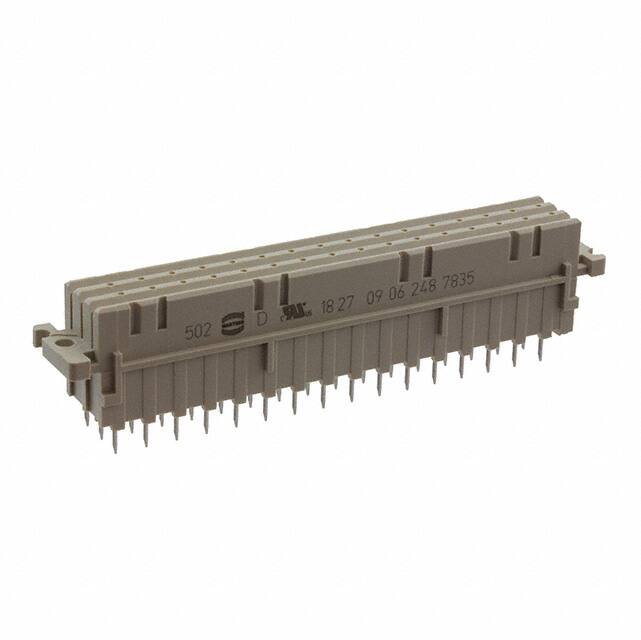

09062487835

Teknik Özellikler

Iec Conformance

NO

Kurşunsuz Kodu

yes

Option

GENERAL PURPOSE

Number Of Positions Loaded

All

Filter Feature

NO

Number Of Pcb Rows

3

Withdrawl Forcemin

1.5568 N

Polarization Key

POLARIZED HOUSING

Connector Type

Receptacle, Female Sockets

Mil Conformance

NO

Çalışma Sıcaklığı

-55°C~125°C

Insertion Forcemax

1.5568 N

Sıra Sayısı

3

Total Number Of Contacts

48

Nem Hassasiyeti (MSL)

1 (Unlimited)

Material Insulation

Polybutylene Terephthalate (PBT), Glass Filled

Mixed Contacts

NO

Reference Standard

VDE,CSA

Body Depth

0.791 inch

Material Flammability Rating

UL94 V-0

Fabrika Tedarik Süresi

8 Weeks

Insulation Resistance

1000000000000Ohm

Current Rating Amps

6A

Reliability

COMMERCIAL

Mating Contact Row Spacing

0.2 inch

Din Conformance

YES

Montaj Tipi

Through Hole

Pcb Contact Row Spacing

5.08 mm

Length Termination

0.177 inch

Style

F

Seri

DIN 41612

Terminal

Solder

Contact Finish

Gold

Ul Flammability Code

94V-0

Pcb Contact Pattern

RECTANGULAR

Dielectric Withstanding Voltage

1550VAC V

Durability

50 Cycles

Empty Shell

NO

RoHS Durumu

ROHS3 Compliant

Parça Durumu

Active
