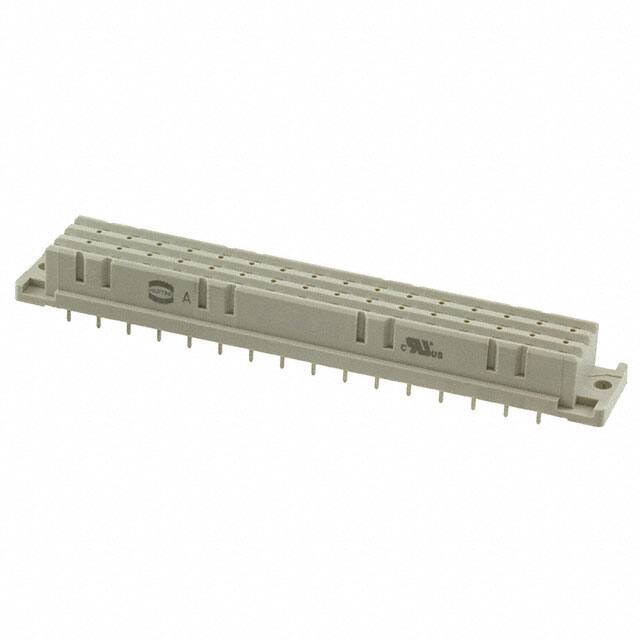

09062487833

Teknik Özellikler

Ambalaj

Bulk

Pitch

0.150 3.81mm

Contact Resistance

15mOhm

Pozisyon Sayısı

48

Name Of Rows Loaded

Z,B,D

Parça Durumu

Active

RoHS Durumu

ROHS3 Compliant

Pcb Contact Pattern

RECTANGULAR

Dielectric Withstanding Voltage

1550VAC V

Durability

50 Cycles

Empty Shell

NO

Contact Finish

Gold or Gold-Palladium

Ul Flammability Code

94V-0

Terminal

Solder

Style

F

Seri

DIN 41612

Contact Plating

Gold

Montaj Tipi

Through Hole

Length Termination

0.126 inch

Reliability

COMMERCIAL

Mating Contact Row Spacing

0.15 inch

Din Conformance

YES

Fabrika Tedarik Süresi

7 Weeks

Insulation Resistance

1000000000000Ohm

Material Flammability Rating

UL94 V-0

Flammability Rating

UL94 V-0

Reference Standard

VDE,CSA

Mixed Contacts

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

ECCN Kodu

EAR99

Material Insulation

Polybutylene Terephthalate (PBT), Glass Filled

Rated Current Signal

6A

Total Number Of Contacts

48

Sıra Sayısı

3

Polarization Key

POLARIZED HOUSING

Connector Type

Receptacle, Female Sockets

Mil Conformance

NO

Çalışma Sıcaklığı

-55°C~125°C

Insertion Forcemax

1.5568 N

Montaj

Through Hole
