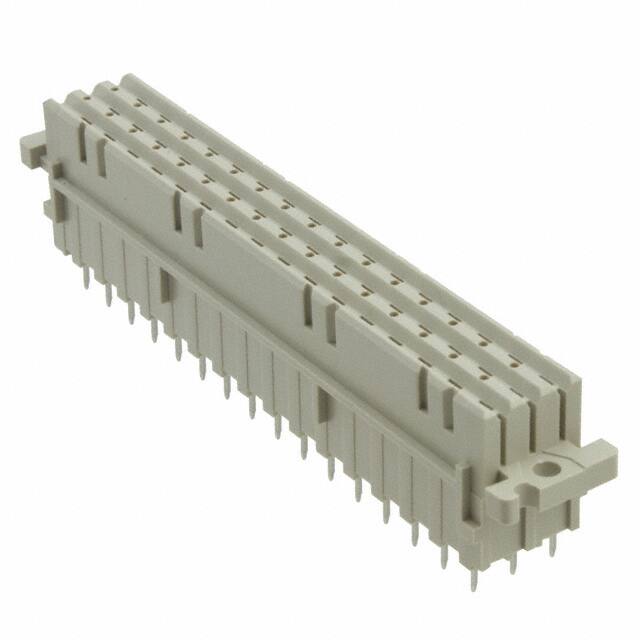

09062486848

Teknik Özellikler

Insertion Forcemax

1.5568 N

Level Class

2

Mil Conformance

NO

Polarization Key

POLARIZED HOUSING

Depth

14.7mm

Additional Feature

SHROUDED

Withdrawl Forcemin

1.5568 N

Number Of Pcb Rows

3

Filter Feature

NO

JESD-609 Kodu

e4

Akım Değeri

6A

Gender

Receptacle

Fabrika Tedarik Süresi

4 Weeks

Insulation Resistance

1000000000000Ohm

Flammability Rating

UL94 V-0

Nem Hassasiyeti (MSL)

1 (Unlimited)

Material Insulation

Thermoplastic, Glass Filled

Reference Standard

VDE,CSA

Ul Flammability Code

94V-0

Style

F

Seri

DIN 41612

Terminal

Solder

Pcb Contact Row Spacing

5.08 mm

Montaj Tipi

Through Hole

Orientation

Straight

Name Of Rows Loaded

Z,B,D

Housing Material

Thermoplastic

Parça Durumu

Active

Max Current Rating

6A

Pcb Contact Pattern

RECTANGULAR

Dielectric Withstanding Voltage

1550VAC V

Empty Shell

NO

Connector Type

Receptacle, Female Sockets

Sıra Sayısı

3

Montaj

Through Hole

Number Of Positions Loaded

All

Iec Conformance

NO

Kurşunsuz Kodu

yes

Option

GENERAL PURPOSE

Material Flammability Rating

UL94 V-0
