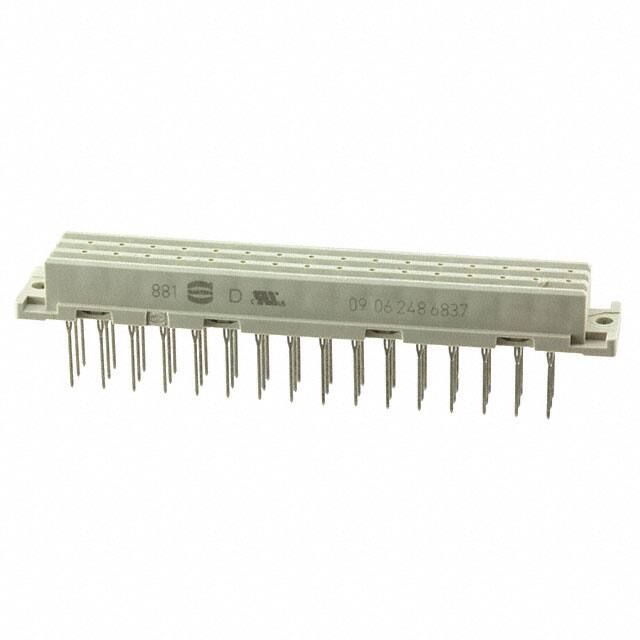

09062486837

Teknik Özellikler

RoHS Durumu

ROHS3 Compliant

Parça Durumu

Active

Pcb Contact Pattern

RECTANGULAR

Dielectric Withstanding Voltage

1550VAC V

Durability

400 Cycles

Pitch

0.200 5.08mm

Ambalaj

Bulk

Name Of Rows Loaded

Z,B,D

Pozisyon Sayısı

48

Contact Resistance

15mOhm

Mating Contact Row Spacing

0.15 inch

Din Conformance

YES

Reliability

COMMERCIAL

Montaj Tipi

Through Hole

Contact Finish

Gold or Gold-Palladium

Ul Flammability Code

94V-0

Seri

DIN 41612

Contact Plating

Gold

Style

F

Terminal

Press-Fit

Rated Current Signal

6A

Material Insulation

Polybutylene Terephthalate (PBT), Glass Filled

ECCN Kodu

EAR99

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mixed Contacts

NO

Reference Standard

VDE,CSA

Total Number Of Contacts

48

Insulation Resistance

1000000000000Ohm

Fabrika Tedarik Süresi

16 Weeks

Flammability Rating

UL94 V-0

Material Flammability Rating

UL94 V-0

JESD-609 Kodu

e4

Filter Feature

NO

Number Of Positions Loaded

All

Number Of Pcb Rows

3

Iec Conformance

NO

Akım Değeri

6A

Option

GENERAL PURPOSE

Kurşunsuz Kodu

yes

Mil Conformance

NO
