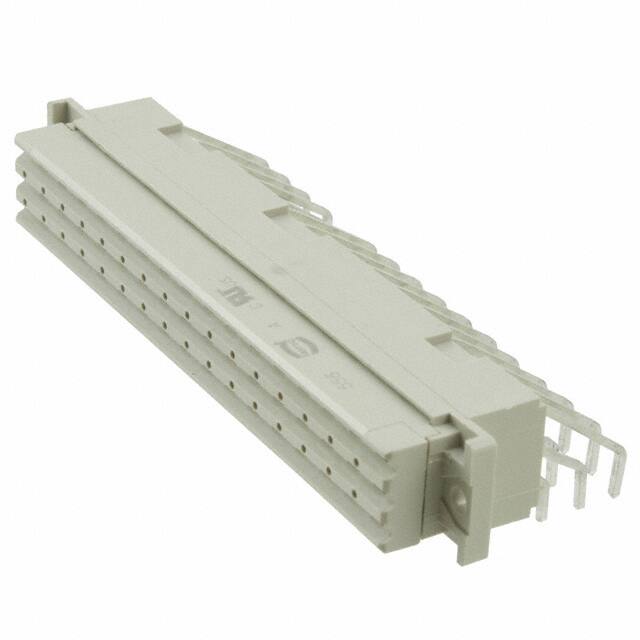

09062486836

Teknik Özellikler

Orientation

Right Angle

Name Of Rows Loaded

Z,B,D

Housing Material

Thermoplastic

Parça Durumu

Active

Max Current Rating

6A

Empty Shell

NO

Pcb Contact Pattern

RECTANGULAR

Dielectric Withstanding Voltage

1550VAC V

Ul Flammability Code

94V-0

Seri

DIN 41612

Style

F

Terminal

Solder

Number Of Contacts

48

Montaj Tipi

Through Hole, Right Angle

Pcb Contact Row Spacing

5.08 mm

Insulation Resistance

1000000000000Ohm

Fabrika Tedarik Süresi

4 Weeks

Flammability Rating

UL94 V-0

Material Insulation

Thermoplastic, Glass Filled

Nem Hassasiyeti (MSL)

1 (Unlimited)

Yükseklik

14.75mm

Reference Standard

VDE,CSA

Depth

32.56mm

Mil Conformance

NO

Polarization Key

POLARIZED HOUSING

Level Class

2

Insertion Forcemax

1.5568 N

Withdrawl Forcemin

1.5568 N

JESD-609 Kodu

e4

Filter Feature

NO

Contact Materials

Gold, Nickel

Number Of Pcb Rows

3

Akım Değeri

6A

Gender

Female

Pitch

0.200 5.08mm

Ambalaj

Bulk

Pozisyon Sayısı

48 (Power)

Contact Resistance

15mOhm

RoHS Durumu

ROHS3 Compliant

Durability

400 Cycles
