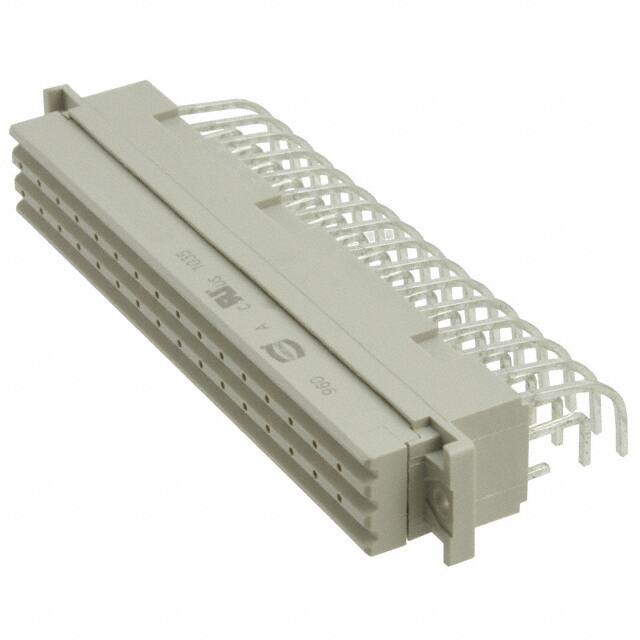

09062486826

Teknik Özellikler

Polarization Key

POLARIZED HOUSING

Mil Conformance

NO

Level Class

2

Insertion Forcemax

1.5568 N

Withdrawl Forcemin

1.5568 N

JESD-609 Kodu

e4

Number Of Pcb Rows

3

Filter Feature

NO

Gender

Receptacle

Akım Değeri

6A

Insulation Resistance

1000000000000Ohm

Fabrika Tedarik Süresi

4 Weeks

Flammability Rating

UL94 V-0

Reference Standard

VDE,CSA

Material Insulation

Thermoplastic, Glass Filled

ECCN Kodu

EAR99

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ul Flammability Code

94V-0

Terminal

Solder

Number Of Contacts

48

Seri

DIN 41612

Reach Svhc

No SVHC

Style

F

Montaj Tipi

Through Hole, Right Angle

Pcb Contact Row Spacing

5.08 mm

Operating Temperature Min

-65°C

Orientation

Right Angle

Name Of Rows Loaded

Z,B,D

Parça Durumu

Active

Housing Material

Thermoplastic

Empty Shell

NO

Pcb Contact Pattern

RECTANGULAR

Dielectric Withstanding Voltage

1550VAC V

Max Current Rating

6A

Sıra Sayısı

3

Connector Type

Receptacle, Female Sockets

Montaj

Through Hole

Number Of Positions Loaded

All

Option

GENERAL PURPOSE

Kurşunsuz Kodu

yes
