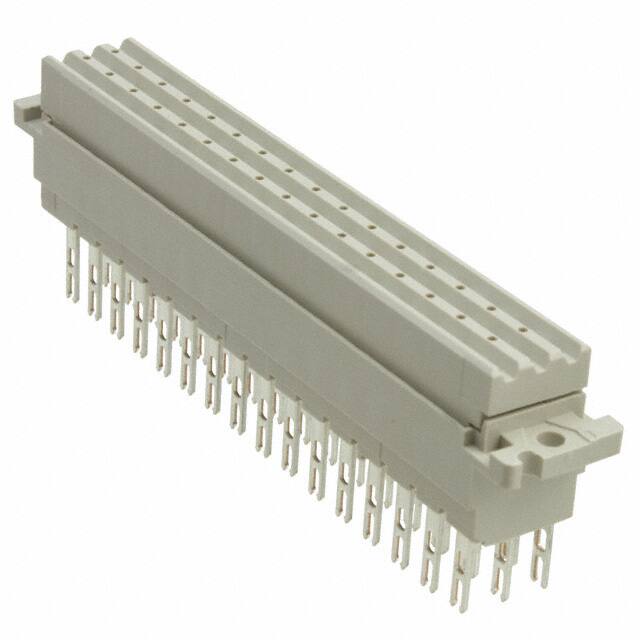

09062486823

Teknik Özellikler

Parça Durumu

Active

Housing Material

Thermoplastic

Dielectric Withstanding Voltage

1550VAC V

Empty Shell

NO

Cable Types

WIRE, DISCRETE

Max Current Rating

6A

Orientation

Straight

Name Of Rows Loaded

D,B,Z

Montaj Tipi

Panel Mount

Hole Diameter

1 mm

Ul Flammability Code

94V-0

Terminal

Solder Lug

Style

F

Reach Svhc

No SVHC

Seri

DIN 41612

Lead Length

9.5mm

Reference Standard

UL, CSA

ECCN Kodu

EAR99

Nem Hassasiyeti (MSL)

1 (Unlimited)

Material Insulation

Thermoplastic, Glass Filled

Fabrika Tedarik Süresi

4 Weeks

Insulation Resistance

1000000000000Ohm

Lead Pitch

5.08mm

Flammability Rating

UL94 V-0

Contact Materials

Copper

Filter Feature

NO

JESD-609 Kodu

e4

Gender

Receptacle

Akım Değeri

6A

Working Voltage

125V

Insertion Forcemax

1.5568 N

Level Class

2

Mil Conformance

NO

Depth

14.7mm

RoHS Durumu

ROHS3 Compliant

Durability

400 Cycles

Length Tail

9.5mm

Ambalaj

Bulk

Pitch

0.200 5.08mm

Material

Glass, Thermoplastic
