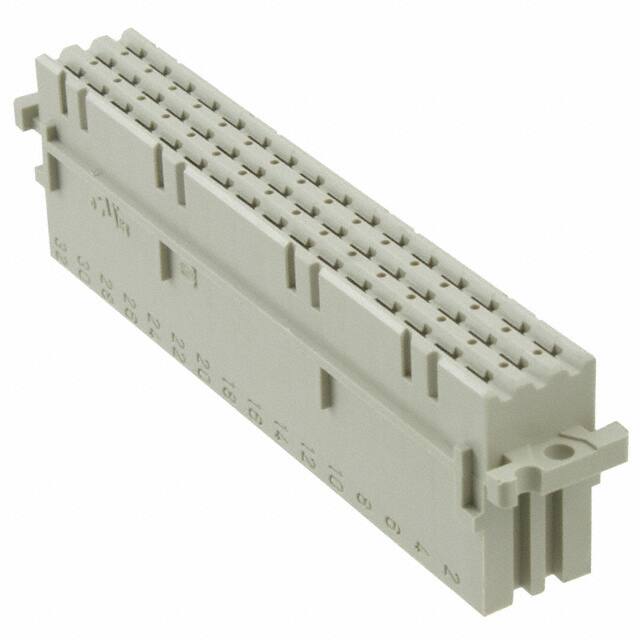

09062483201

Teknik Özellikler

Flammability Rating

UL94 V-0

Weight

28.349523g

Lead Pitch

5.08mm

Insulation Resistance

1000000000000Ohm

Fabrika Tedarik Süresi

3 Weeks

Reference Standard

UL, CSA

ECCN Kodu

EAR99

Nem Hassasiyeti (MSL)

1 (Unlimited)

Yükseklik

24.85mm

Withdrawl Forcemin

1.112 N

Working Voltage

250V

Depth

24.85mm

Mil Conformance

NO

Insertion Forcemax

1.5568 N

Renk

Grey

Akım Değeri

2A

Filter Feature

NO

Contact Materials

Copper

Name Of Rows Loaded

D,B,Z

Bodyshell Style

PLUG

Orientation

Straight

Nominal Gerilim

125V

Empty Shell

YES

Dielectric Withstanding Voltage

1550VAC V

Max Current Rating

6A

Cable Types

WIRE, DISCRETE

Parça Durumu

Active

Housing Material

Thermoplastic

Terminal

Crimp

Contact Finish Mating

NOT SPECIFIED

Seri

DIN 41612

Reach Svhc

No SVHC

Ul Flammability Code

94V-0

Montaj Tipi

Free Hanging (In-Line)

Note

Contacts Not Included

Uzunluk

93.9mm

Total Number Of Contacts

48

Contact Design

STRIP OR LOOSE

Mixed Contacts

NO

Genişlik

93.9mm
