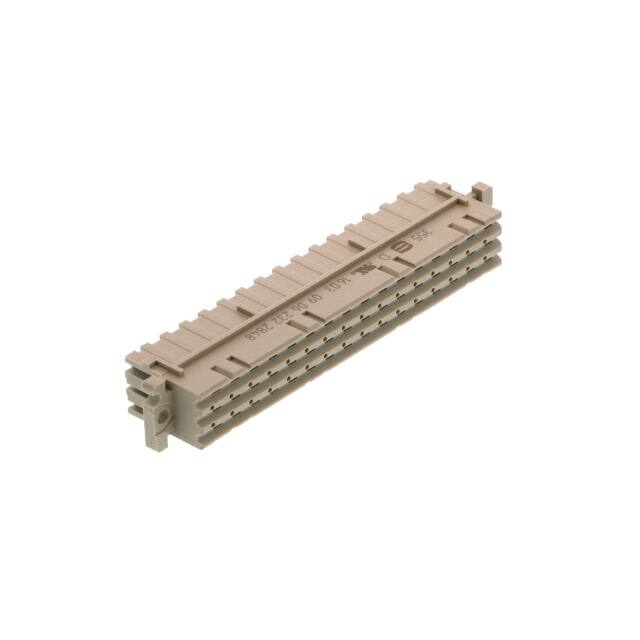

09062322848

Teknik Özellikler

Pitch

0.200 5.08mm

Ambalaj

Bulk

Name Of Rows Loaded

Z,B

Pozisyon Sayısı

48

RoHS Durumu

ROHS3 Compliant

Parça Durumu

Active

Empty Shell

NO

Pcb Contact Pattern

RECTANGULAR

Durability

500 Cycles

Contact Finish

Gold

Ul Flammability Code

94V-0

Seri

DIN 41612

Style

F

Terminal

Solder

Mating Contact Row Spacing

0.2 inch

Din Conformance

YES

Reliability

COMMERCIAL

Montaj Tipi

Through Hole

Pcb Contact Row Spacing

5.08 mm

Current Rating Amps

6A

Fabrika Tedarik Süresi

13 Weeks

Material Flammability Rating

UL94 V-0

Material Insulation

Polybutylene Terephthalate (PBT), Glass Filled

Nem Hassasiyeti (MSL)

1 (Unlimited)

ECCN Kodu

EAR99

Reference Standard

VDE,CSA

Mixed Contacts

NO

Total Number Of Contacts

32

Mil Conformance

NO

Connector Type

Receptacle, Female Sockets

Polarization Key

POLARIZED HOUSING

Level Class

1

Çalışma Sıcaklığı

-55°C~125°C

Sıra Sayısı

3

JESD-609 Kodu

e4

Number Of Positions Loaded

32

Filter Feature

NO

Number Of Pcb Rows

3

Iec Conformance

NO

Option

GENERAL PURPOSE
