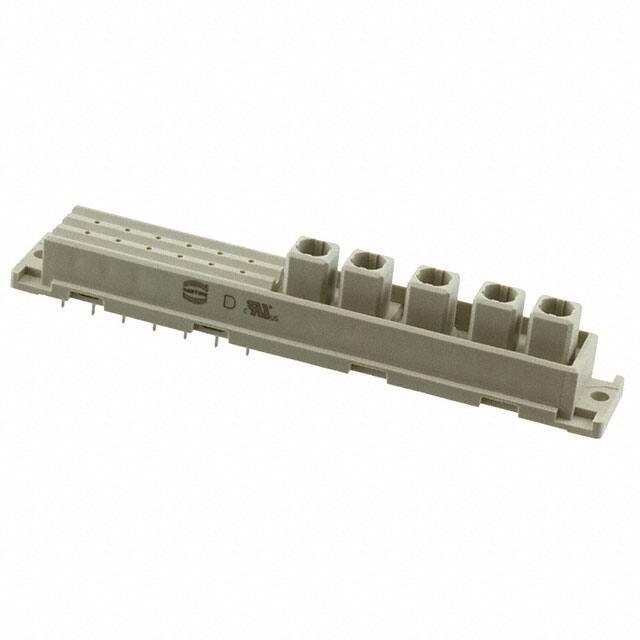

09062216883

Teknik Özellikler

Contact Materials

NOT SPECIFIED

Filter Feature

NO

Number Of Positions Loaded

21

Akım Değeri

40A

Iec Conformance

NO

Option

GENERAL PURPOSE

Gender

Female

Kurşunsuz Kodu

yes

Depth

14.67mm

Çalışma Sıcaklığı

-55°C~125°C

Level Class

2

Mil Conformance

NO

Connector Type

Receptacle, Female Sockets

Sıra Sayısı

3

Montaj

Through Hole

Material Insulation

Polybutylene Terephthalate (PBT), Glass Filled

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mixed Contacts

YES

Total Number Of Contacts

26

Uzunluk

94.75mm

Current Rating Amps

6A

Fabrika Tedarik Süresi

9 Weeks

Flammability Rating

UL94 V-0

Lead Pitch

5.08mm

Material Flammability Rating

UL94 V-0

Din Conformance

YES

Kurşunsuz

Lead Free

Montaj Tipi

Through Hole

Contact Finish

Gold or Gold-Palladium

Ul Flammability Code

94V-0

Contact Plating

Gold

Seri

DIN 41612

Style

MH

Number Of Ports

1

Terminal

Solder

RoHS Durumu

ROHS3 Compliant

Parça Durumu

Active

Terminal Sayısı

26

Pitch

5.08mm

Orientation

Straight
