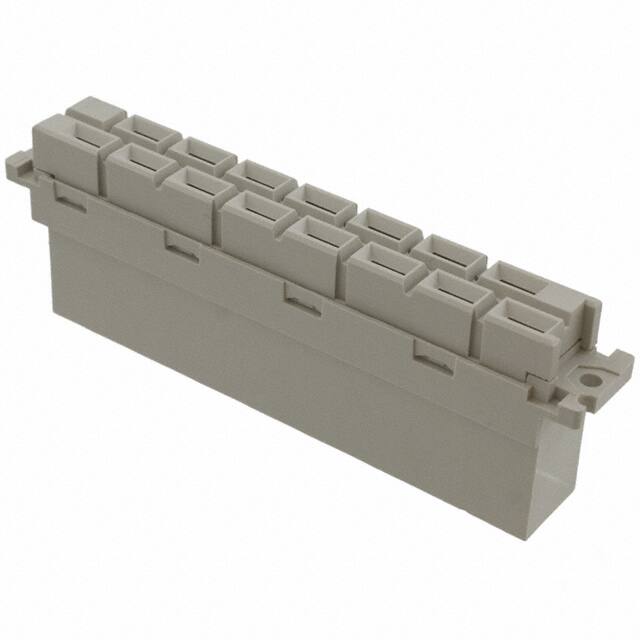

09062152871

Teknik Özellikler

Additional Feature

STAGGERED CONFIGURATION

Polarization Key

POLARIZED HOUSING

Mil Conformance

NO

Akım Değeri

15A

Gender

Receptacle

Filter Feature

NO

Contact Materials

Copper

Lead Pitch

5.08mm

Body Length Or Diameter

3.73 inch

Body Breadth

0.579 inch

Insulation Resistance

1000000000000Ohm

HTS Kodu

8536.69.40.40

Fabrika Tedarik Süresi

4 Weeks

Material Insulation

Thermoplastic, Glass Filled

Nem Hassasiyeti (MSL)

1 (Unlimited)

ECCN Kodu

EAR99

Reference Standard

UL

Contact Finish Mating

NOT SPECIFIED

Seri

DIN 41612

Style

H 15

Terminal

Quick Connect - 0.250 (6.3mm)

Number Of Contacts

15

Ul Flammability Code

94V-0

Operating Temperature Min

-55°C

Montaj Tipi

Panel Mount

Name Of Rows Loaded

Z,D

Orientation

Straight

Empty Shell

NO

Housing Material

Thermoplastic

Parça Durumu

Active

Connector Type

Receptacle, Female Blade Sockets

Sıra Sayısı

2

Iec Conformance

NO

Option

GENERAL PURPOSE

Kurşunsuz Kodu

yes

Number Of Positions Loaded

All

Material Flammability Rating

UL94 V-0

Voltage Rated Dc

500V

Mixed Contacts

NO

Contact Plating

Silver
