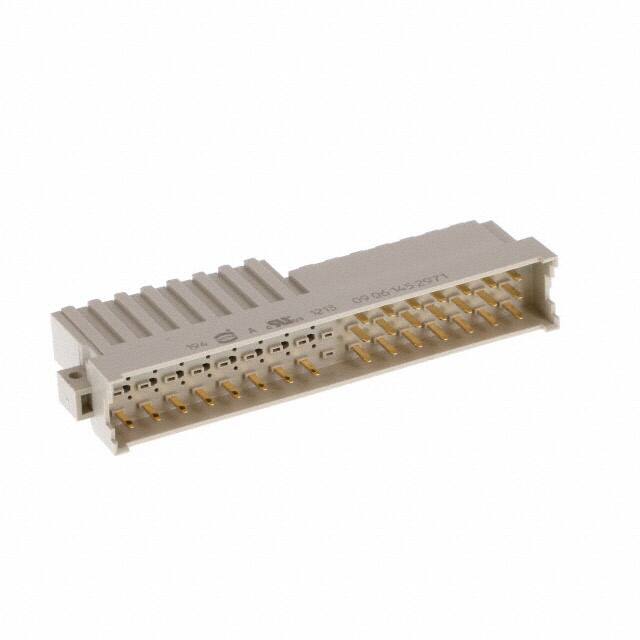

09061452971

Teknik Özellikler

Maks. Çalışma Sıcaklığı

125°C

Montaj Tipi

Through Hole, Right Angle

Min. Çalışma Sıcaklığı

-55°C

Din Conformance

YES

Terminal

Solder

Style

FM

Seri

DIN 41612

Contact Plating

Gold

Contact Finish Thickness

Flash

Contact Finish

Gold-Palladium

Ul Flammability Code

94V-0

Empty Shell

NO

Shell Material

GLASS FILLED POLYETHYLENE

Parça Durumu

Active

Housing Material

Thermoplastic

RoHS Durumu

ROHS3 Compliant

Contact Resistance

15mOhm

Pozisyon Sayısı

48

Ambalaj

Bulk

Pitch

0.200 5.08mm

Orientation

Right Angle

Kurşunsuz Kodu

yes

Gender

Male

Option

GENERAL PURPOSE

Iec Conformance

NO

Akım Değeri

6A

Contact Materials

NOT SPECIFIED

Number Of Positions Loaded

45

Filter Feature

NO

JESD-609 Kodu

e4

Montaj

Through Hole

Sıra Sayısı

3

Mil Conformance

NO

Connector Type

Header, Male Pins

Level Class

1

Total Number Of Contacts

45

Mixed Contacts

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Material Insulation

Polybutylene Terephthalate (PBT), Glass Filled

Material Flammability Rating

UL94 V-0
