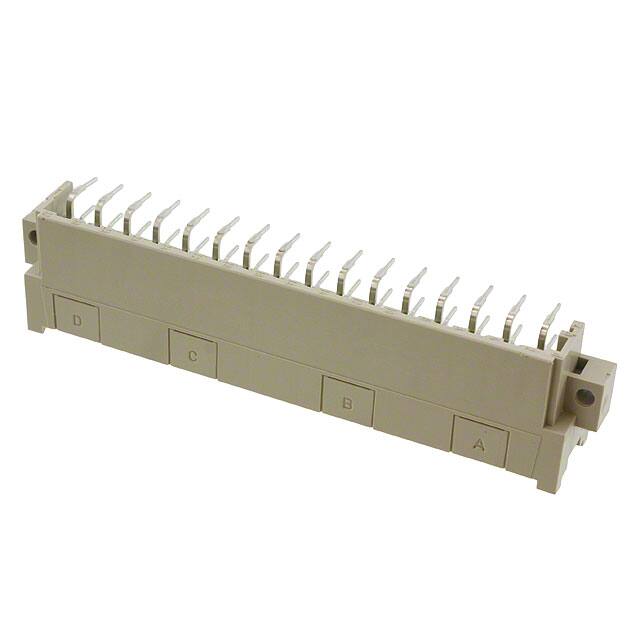

09061327901

Teknik Özellikler

Operating Temperature Max

125°C

Body Depth

0.866 inch

Material Flammability Rating

UL94 V-0

Total Number Of Contacts

32

Rated Current Signal

6A

Mixed Contacts

NO

Montaj

Through Hole

Connector Type

Header, Male Pins

Sıra Sayısı

3

Iec Conformance

NO

Kurşunsuz Kodu

yes

Option

GENERAL PURPOSE

Number Of Positions Loaded

32

Pozisyon Sayısı

48 (Power)

Contact Resistance

15mOhm

Pitch

0.200 5.08mm

Length Tail

3mm

Ambalaj

Bulk

Durability

50 Cycles

RoHS Durumu

ROHS3 Compliant

Contact Finish

Gold

Contact Finish Thickness

Flash

Reliability

COMMERCIAL

Din Conformance

YES

Flammability Rating

UL94 V-0

Fabrika Tedarik Süresi

7 Weeks

Insulation Resistance

1000000000000Ohm

Nem Hassasiyeti (MSL)

1 (Unlimited)

ECCN Kodu

EAR99

Material Insulation

Thermoplastic, Glass Filled

Reference Standard

VDE,CSA

Withdrawl Forcemin

1.5568 N

Insertion Forcemax

1.5568 N

Mil Conformance

NO

Polarization Key

POLARIZED HOUSING

Akım Değeri

6A

Filter Feature

NO

Contact Materials

Gold, Nickel

Number Of Pcb Rows

3

JESD-609 Kodu

e4
